EMSA090200-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA090200-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 9V @ 2A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA090200-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Safety Class:
None
Minimum Load (Amps):
0
Minimum Input Voltage:
90Vac
Output Connector Type:
Barrel - Female
Typical Hold-Up Time:
Not Spec'd
Maximum Input Current:
Not Spec'd
Thermal Protection:
No
Maximum DC Input Voltage:
Not App
Maximum Output Current:
2.0 A
Number of Outputs:
1
Over Voltage Protection:
Yes
Maximum AC Input Voltage:
264
Mounting Style:
External
Output Type:
Fixed
Adapter Color:
Black
DC Input Voltage:
Not App
Output Connector Diameters:
2.1 x 5.5 mm
Output Voltage:
9 VDC
Short Circuit Protection:
Yes
Output Cord Length:
1.53m (60.3in)
Output Connector Angle:
Straight
Overload Protection:
No
Grade:
Commercial
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Power Rating:
18 W
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Maximum Output Power:
18 W
Input Connector Type:
Interchangeable-Kit
Line Regulation:
1.00 %
Power:
18 W
Operating Temperature:
0 to 40 °C
Output Connector Polarity:
Center Positive
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Input Voltage:
90 to 264Vac
Family:
EMSA-18W
PFC:
No
Style:
Interchangeable WallMount
DOE Efficiency Level:
V
Input Frequency:
47 to 63 Hz
Minimum AC Input Voltage:
90
Dimension:
74 x 43.5 x 35.3 mm
Maximum Input Voltage:
264Vac
Mounting:
External
Input/Output Type:
AC/DC
Ripple & Noise:
150 mV
Dimensions LxWxH:
2.92 x 1.72 x 1.39In
Minimum DC Input Voltage:
Not App
Type:
Regulated-Switching
Minimum Isolation Voltage:
4242Vdc/3000Vac
Output Current:
2.0 A
CoC Tier:
No
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Power Indicator:
No
AC Input Voltage:
90 to 264
AC Input Current - Maximum:
0.6A
Package Type:
Wall Plug
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 9V @ 2A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA090200P5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

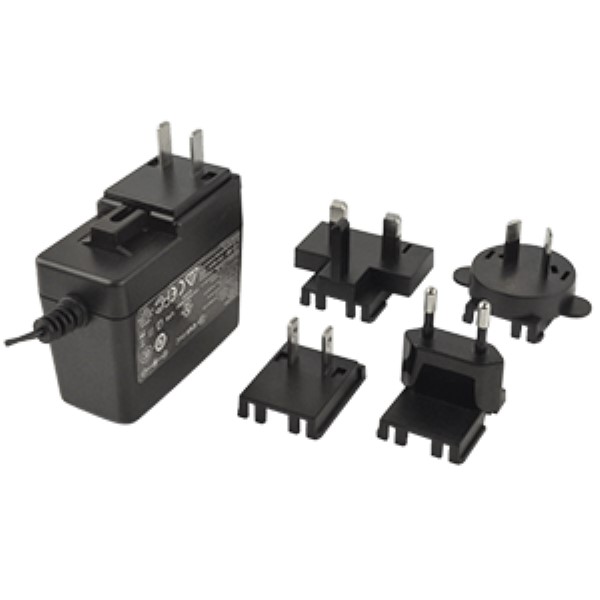

RECOMMENDED REPLACEMENT
SMI18-9-V-P5
SMI18-9-V-P5
VIEW PRODUCT
