SMI18-9-V-P5 by cui inc.

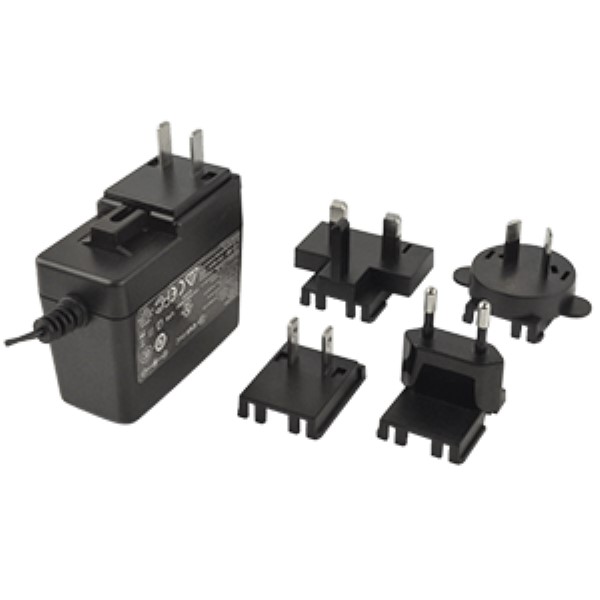

Image is representational - see mfr. specs
DATA SHEET

SMI18-9-V-P5

CUI Inc.

AC/DC Adapter - Wall Mount - 19.8 Watts: 9V @ 2.2A - AU_CN_EU_NA_UK Input Blades Kit - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI18-9-V-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Output Current:
2.2 A
Family:
SMI18
PFC:
No
Output Cord Length:
1.5m (59.1in)
Dimensions L x W x H:
75.0 x 35.8 x 65.6 mm
Minimum Isolation Voltage:
3000Vac
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Output Connector Type:
Barrel - Female
Safety Class:
None
Output Type:
Fixed
Maximum Output Current:
2.2 A
Maximum Input Current:
Not Spec'd
Package Type:
Wall Plug
Minimum AC Input Voltage:
90
Power Rating:
19.8 W
Input Connector Type:
Interchangeable-Kit
Line Regulation:
5.00 %
Number of Outputs:
1
Minimum DC Input Voltage:
Not App
Adapter Color:
Black
Output Connector Polarity:
Center Positive
Maximum Input Voltage:
264Vac
Output Voltage:
9 VDC
Typical Hold-Up Time:
10ms(Min)
DC Input Voltage:
Not App
Maximum DC Input Voltage:
Not App
Load Regulation:
5.00 %
Efficiency:
Not Spec'd
AC Input Current - Maximum:
0.48A
Dimension:
75 x 35.8 x 65.6 mm
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Minimum Input Voltage:
90Vac
Output Connector Diameters:
2.1 x 5.5 mm
Mounting Style:
External
CoC Tier:
2
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Thermal Protection:
No
Style:
Interchangeable WallMount
Typical Inrush Current:
50/60A(Max) at 100/230Vac
Dimensions L x W x H(in):
2.97 x 1.41 x 2.59 in
Short Circuit Protection:
Yes
Input/Output Type:
AC/DC
Maximum Output Power:
19.8 W
Over Voltage Protection:
Yes
DOE Efficiency Level:
VI
Safety Approvals:
CCC, CE, cUL, PSE, RCM, UL
Input Frequency:
47 to 63 Hz
Mounting:
External
Grade:
Commercial
Overload Protection:
Yes
AC Input Voltage:
90 to 264
Output Connector Angle:
Straight
Dimensions LxWxH:
2.953 x 1.409 x 2.583 in
Power Indicator:
No
Ripple & Noise:
100 mV
Power:
19.8 W
Operating Temperature:
0 to 40 °C
Maximum AC Input Voltage:
264
AC/DC Adapter - Wall Mount - 19.8 Watts: 9V @ 2.2A - AU_CN_EU_NA_UK Input Blades Kit - Lvl VI/T2
Search Keywords:
SMI189VP5
IN STOCK: 0
MOQ for out of Stock Qty:
135
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$31.17
$31.17
25
$20.13
$503.25
50
$19.50
$975.00
100
$18.91
$1,891.00
135
$18.72
$2,527.20
270
$18.54
$5,005.80
405
$18.35
$7,431.75
540 +
$18.17
$9,811.80
