RECOM’s 3D Power Packing

RECOM Power's new DC/DC converter modules employ 3D assembly to utilize the Z-axis. These modules seamlessly integrate into SMT assembly, mimicking standard component processes. They maintain a slim profile that suits modern devices. A compact footprint is vital to preserve module benefits over discrete designs.

  • RPMx: The RPMB/RPMH series illustrates a 30W component housed within a thermally-improved LGA package with 25 pads. The package dimensions measure 11.7mm x 12.19mm x 3.75mm in height. This high-power density is made possible through a multi-layer internal PCB that employs plugged and blind vias.
  • RPX: The RPX series features high-density footprints in thermally enhanced QFN packages and operate up to 85°C without forced air cooling. The 1A and 1.5A versions in 3mm x 5mm x 1.6mm QFN packages support input voltages from 4VDC to 36VDC, accommodating 5V, 12V, 15V, or unregulated 24VDC supplies.
  • RPL: The RPL-3.0 series offers input flexibility from 3V to 18V, a maximum 3000mA output, and efficiency reaching up to 89%. These buck converters, complete with integrated inductors, reside in a compact 3mm x 3mm x 1.45mm thermally enhanced LGA package.
  • RxxCT(E) and RxxC05TE: The RxxCT(E) and RxxC05TE series employ an ultra-low profile with isolation voltages of up to 5k VAC/1min and reinforced 2MOPP isolation. The overall component height renders them apt for card-type applications where the converter's isolation height aligns with surrounding SMT components.
View
Show products manufactured by RECOM
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support

43 PRODUCT RESULTS FOR ""

Filter Results

43 Products

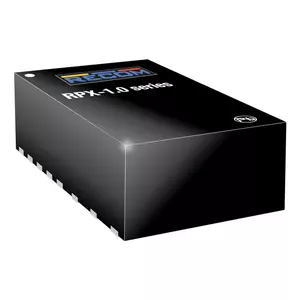

    RPX-1.0-CT
    Data Sheet
    RPX-1.0-CT RECOM
    DC-DC Converter - 1.0A - Output: 0.8 - 30 VDC - Input: 4 - 36 VDC
    VIEW PRODUCT
    6 Weeks
    10
    $8.04
    50
    $5.54
    100
    $4.94
    250
    $4.57
    500
    $4.30
    RPX-1.0-R
    Data Sheet
    RPX-1.0-R RECOM
    DC-DC Converter - 1.0A - Output: 0.8 - 30 VDC - Input: 4 - 36 VDC
    VIEW PRODUCT
    6 Weeks
    500
    $2.429
    1,000
    $2.417
    2,500
    $2.405
    5,000
    $2.393
    7,500
    $2.381
    RPX-1.5-R
    Data Sheet
    RPX-1.5-R RECOM
    DC-DC Converter - 1.5A - Output: 0.8 - 30 VDC - Input: 4 - 36 VDC
    VIEW PRODUCT
    6 Weeks
    100
    $3.87
    250
    $3.75
    500
    $3.55
    1,000
    $3.45
    2,500
    $3.36
    RPX-2.5-CT
    Data Sheet
    RPX-2.5-CT RECOM
    Module DC-DC 1-OUT 1.2V to 6V 2.5A 15W 9-Pin QFN Bag
    VIEW PRODUCT
    6 Weeks
    10
    $5.020
    30
    $4.891
    100
    $4.598
    250
    $4.575
    500
    $4.552

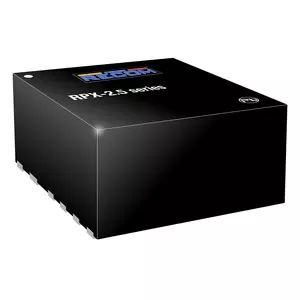

    RPX-2.5-R
    Data Sheet
    RPX-2.5-R RECOM
    DC-DC Converter - 2.5A - Output: 1.2-6 VDC - Input: 4.5-28 VDC
    VIEW PRODUCT
    6 Weeks
    250
    $3.737
    500
    $3.659
    1,000
    $3.640
    2,500
    $3.622
    5,000 +
    $3.604
    RPX-4.0-CT
    RPX-4.0-CT RECOM
    4A - DC-DC Converter - Input: 3.8 to 36 VDC - Output: 1 to 7 VDC - SMD - Regulated - Bulk - 80000271
    VIEW PRODUCT
    6 Weeks
    10
    $7.43
    30
    $7.07
    100
    $6.62
    250
    $6.51
    500
    $6.46

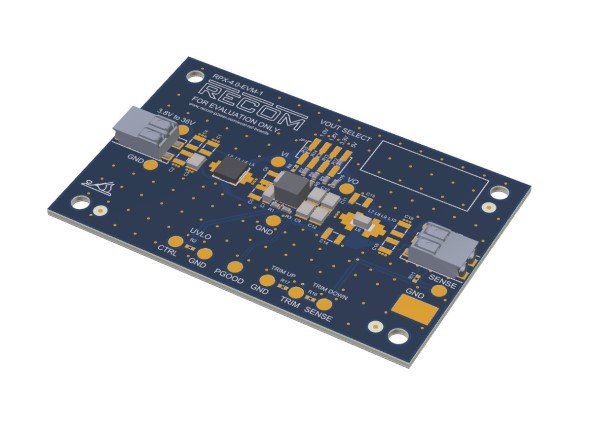

    RPX-4.0-EVM-1
    RPX-4.0-EVM-1 RECOM
    RPX-4.0 Evaluation Module - 89000022
    VIEW PRODUCT
    10 Weeks
    1
    $65.30
    5
    $58.26
    10
    $56.53
    25
    $54.10
    50
    $51.88
    RPX-4.0-R
    RPX-4.0-R RECOM
    4A - DC-DC Converter - Input: 3.8 to 36 VDC - Output: 1 to 7 VDC - SMD - Regulated - Tape&Reel - 80000272
    VIEW PRODUCT
    6 Weeks
    5
    $6.81
    25
    $6.32
    50
    $6.09
    125
    $5.98
    250
    $5.39
    RPY-1.5Q-R
    RPY-1.5Q-R RECOM
    1.5A DC/DC-Converter - In: 4 to 34.6 VDC - Out: 0.8 to 30 VDC - SMD - Regulated - Tape&Reel
    VIEW PRODUCT
    6 Weeks
    5
    $6.03
    25
    $4.18
    50
    $4.16
    125
    $4.12
    250
    $4.10
    R05C05TE05S-CT
    R05C05TE05S-CT RECOM
    0.5W DC/DC-Converter - Output: 5.0VDC - Input: 4.5-5.5V - regulated - SMD 16 Pin - 3kV Isolation
    VIEW PRODUCT
    6 Weeks
    10
    $6.02
    50
    $4.90
    100
    $4.67
    250
    $4.48
    500
    $4.29
