RECOM’s 3D Power Packing

RECOM Power's new DC/DC converter modules employ 3D assembly to utilize the Z-axis. These modules seamlessly integrate into SMT assembly, mimicking standard component processes. They maintain a slim profile that suits modern devices. A compact footprint is vital to preserve module benefits over discrete designs.

  • RPMx: The RPMB/RPMH series illustrates a 30W component housed within a thermally-improved LGA package with 25 pads. The package dimensions measure 11.7mm x 12.19mm x 3.75mm in height. This high-power density is made possible through a multi-layer internal PCB that employs plugged and blind vias.
  • RPX: The RPX series features high-density footprints in thermally enhanced QFN packages and operate up to 85°C without forced air cooling. The 1A and 1.5A versions in 3mm x 5mm x 1.6mm QFN packages support input voltages from 4VDC to 36VDC, accommodating 5V, 12V, 15V, or unregulated 24VDC supplies.
  • RPL: The RPL-3.0 series offers input flexibility from 3V to 18V, a maximum 3000mA output, and efficiency reaching up to 89%. These buck converters, complete with integrated inductors, reside in a compact 3mm x 3mm x 1.45mm thermally enhanced LGA package.
  • RxxCT(E) and RxxC05TE: The RxxCT(E) and RxxC05TE series employ an ultra-low profile with isolation voltages of up to 5k VAC/1min and reinforced 2MOPP isolation. The overall component height renders them apt for card-type applications where the converter's isolation height aligns with surrounding SMT components.
View
Show products manufactured by RECOM
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support

43 PRODUCT RESULTS FOR ""

Filter Results

43 Products

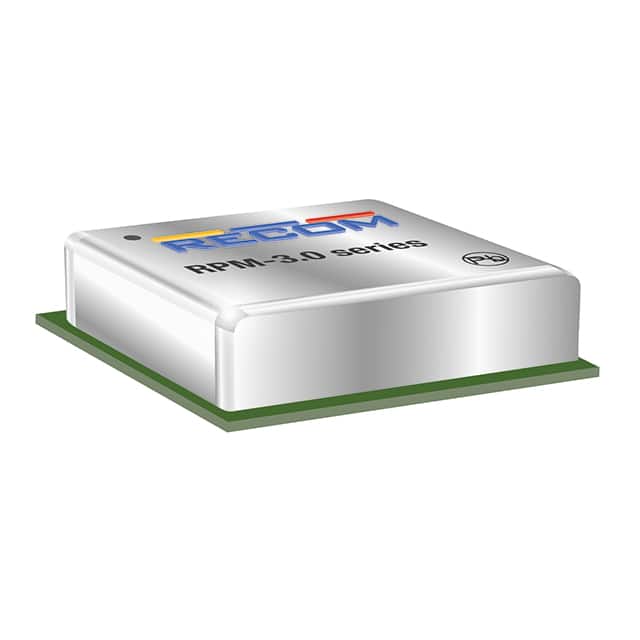

    RPM5.0-3.0
    RPM5.0-3.0 RECOM
    DC/DC Converter - 1 Output: 3A 5V - 3 to 17V Input - Remote On/Off, OCP, OTP, SCP, UVLO - 97% Efficiency - 25-BLG ...
    VIEW PRODUCT
    10 Weeks
    5
    $6.318
    25
    $4.885
    50
    $4.837
    125
    $4.714
    250
    $4.668
    RPM5.0-3.0-CT
    Data Sheet
    RPM5.0-3.0-CT RECOM
    Module DC-DC 1-OUT 5V 3A 25-Pin LGA Module Tube
    VIEW PRODUCT
    10 Weeks
    30
    $5.77
    60
    $5.68
    120
    $5.53
    270
    $5.10
    510
    $5.03
    RPM5.0-6.0-CT
    Data Sheet
    RPM5.0-6.0-CT RECOM
    DC/DC Converter - 6 Amp - Input: 4-15VDC - Output: 5.0VDC - Leadless SMD
    VIEW PRODUCT
    10 Weeks
    5
    $8.32
    30
    $7.59
    60
    $7.27
    120
    $7.08
    270
    $6.72
    RPMB3.3-2.0-CT
    Data Sheet
    RPMB3.3-2.0-CT RECOM
    Module DC-DC 24VIN 1-OUT 3.3V 2A 6.6W 25-Pin LGA Module Tube
    VIEW PRODUCT
    10 Weeks
    30
    $6.71
    60
    $6.64
    120
    $6.22
    270
    $5.88
    510
    $5.85
    RPMB5.0-3.0-CT
    Data Sheet
    RPMB5.0-3.0-CT RECOM
    Module DC-DC 24VIN 1-OUT 5V 3A 25-Pin LGA Module Tube
    VIEW PRODUCT
    20 Weeks
    30
    $6.91
    60
    $6.62
    120
    $6.45
    270
    $6.12
    510
    $6.03
    RPMH12-0.5-CT
    Data Sheet
    RPMH12-0.5-CT RECOM
    Regulated 0.5A DC/DC-Converter - SMD - Input: 13.5 - 65VDC - Output: 12DC
    VIEW PRODUCT
    36 Weeks
    1
    $6.798
    30
    $6.180
    60
    $6.090
    120
    $5.910
    270
    $5.430
    RPMH24-1.5-CT
    RPMH24-1.5-CT RECOM
    Regulated 1.5A DC/DC-Converter - SMD - Inut: 26-60VDC - Output: 24VDC - Tube
    VIEW PRODUCT
    36 Weeks
    5
    $9.71
    30
    $8.86
    60
    $8.49
    120
    $8.26
    270
    $7.84
    RPMH5.0-0.5-CT
    Data Sheet
    RPMH5.0-0.5-CT RECOM
    Module DC-DC 1-OUT 5V 0.5A 25-Pin LGA Module Tube
    VIEW PRODUCT
    36 Weeks
    30
    $5.84
    60
    $5.76
    120
    $5.60
    270
    $5.17
    510
    $5.09
    RPMH5.0-1.5-CT
    RPMH5.0-1.5-CT RECOM
    Regulated 1.5A DC/DC-Converter - SMD - Inut: 7-60VDC - Output: 5.0VDC - Tube
    VIEW PRODUCT
    10 Weeks
    5
    $9.71
    30
    $8.86
    60
    $8.49
    120
    $8.26
    270
    $7.84
    RPL-3.0-CT
    RPL-3.0-CT RECOM
    DC-DC Converter - 3A - Output: 0.8-5.2 VDC - Input: 3-18 VDC - Regulated - 10 pad LGA - SMD
    VIEW PRODUCT
    6 Weeks
    10
    $4.25
    50
    $3.49
    100
    $3.44
    250
    $3.26
    500
    $3.09
