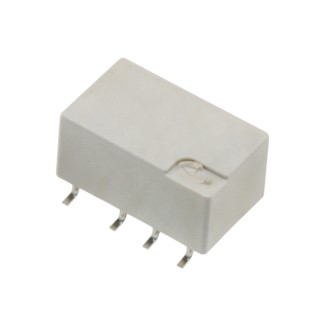

IM03GR by te connectivity / p-b brand
Image is representational - see mfr. specs
DATA SHEET

IM03GR

TE Connectivity / P&B Brand

Signal Relay - DPDT (2 Form C) - 5VDC Coil - 140 mW Coil Power - 2A Contact - 250VAC/220VDC Switching - Non Latching Coil - Gull Wing. .. see full description

RoHS Compliant
Reel Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
IM03GR
Alias/AKA:
1-1462037-4
RoHS:
Yes
HTS:
8536410030
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Reel
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Surface Mount
Operating Temperature:
-40 to 85 °C
Dimension:
10 x 6 x 5.7 mm
Termination Style:
Gull Wing
Coil Current:
28.1 mA
Contact Form:
2 Form C
The IM03GR is hermetically sealed signal relay with operating temperature range from -40°C to 85°C.
Product Highlights:
  • IM Relay Series
  • DC Actuating System
  • Input Voltage = 5 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 2 Amps.
Search Keywords:
IM03GR
IN STOCK: 0
Minimum Order Quantity:
100
Factory Lead-Time
26 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
100
$1.001
$100.100
250
$0.990
$247.500
500
$0.985
$492.500
1,000
$0.980
$980.000
3,000
$0.966
$2,898.000
5,000
$0.961
$4,805.000
8,000
$0.956
$7,648.000
10,000 +
$0.951
$9,510.000
Suppliers Standard Package
