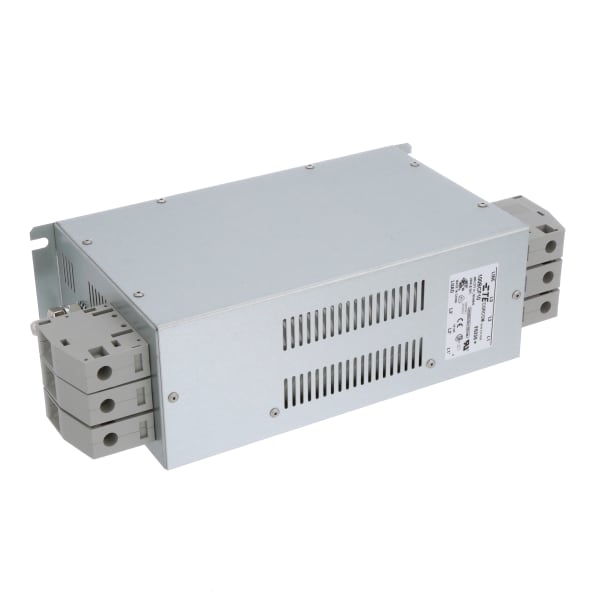

Image is representational - see mfr. specs

100BCF10

EMC/EMI Line Filter - Three Phase (Delta) - Two Stage - 277V Phase to Ground - 480V Phase to Phase - 50/60Hz - 100 A - Terminal Block - Chassis Mount. .. see full description

RoHS Compliant

Carton Packaging

Discontinued

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

TE Connectivity / Corcom Brand

Part No:

100BCF10

Alias/AKA:

1609989-7

RoHS:

Yes

HTS:

8548000000

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Carton

Mounting:

Flange Mount

Maximum Voltage Rating:

480 VAC

Maximum Current Rating:

100 A

Operating Frequency:

50,60 Hz

Operating Temperature:

-10 to 50 °C

Dimension:

90 x 270 x 150 mm

Life Cycle:

Discontinued

The 100BCF10 from TE Connectivity / Corcom Brand is 100A compact 3-phase delta EMC/EMI line filter for universal applications. This two stage filter has 277V phase to ground and 480V phase to phase voltage with 50/60Hz frequency. The 100BCF10 has insulated high quality safety terminals for input and output. The touch safe terminals provide easy connections and prevent inadvertent contact for safety in the most demanding applications. It is suitable for 3-phase inverters, converters, variable speed motor drives and process automation equipment applications. Operating temperature range is from -10°C to 50°C.
