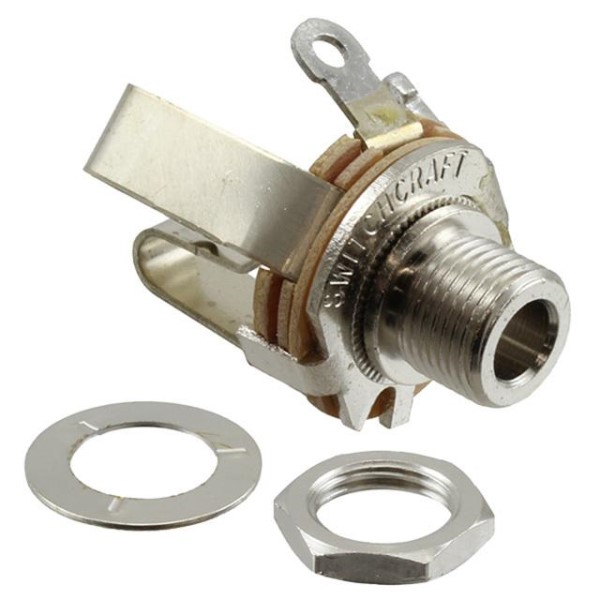

C12BX by switchcraft
Image is representational - see mfr. specs
DATA SHEET

C12BX

Switchcraft

Connector 1/4"" Phone Jack F - 3 Position - Solder Lug ST Panel Mount - 3 Terminal - 1 Port. .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Switchcraft
Part No:
C12BX
RoHS:
Yes
HTS:
8536694020
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
1/4" Phone Jack
Gender:
F
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Plastic
Number of Contacts:
3
Contact Plating:
N/A
Termination Method:
Solder
Operating Temperature:
-20 to 65 °C
The C12BX is a 3-conductor Open Frame Jack with nickel-plated copper alloy bushing, phenolic insulating washers, special copper alloy tip and ring springs. The MIL jacks mate with the MIL-type phone plug. It has a non-turn locating pin which keys the jack to the mounting surface.
Search Keywords:
C12BX
IN STOCK: 0
Minimum Order Quantity:
5
Factory Lead-Time
8 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$7.11
$35.55
25
$5.49
$137.25
50
$5.41
$270.50
100
$5.14
$514.00
300
$5.12
$1,536.00
500
$4.98
$2,490.00
1,000
$4.85
$4,850.00
2,500 +
$4.82
$12,050.00
Suppliers Standard Package
Product Guides
PDF Datasheet
