PB08NA01
Staffall Inc.Connector - Binding Post F - 1 POS - Wire - Wrap ST - Panel Mount - 1 Port .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Staffall Inc.
Part No:
PB08NA01
Alias/AKA:
01-1010-1-0210
RoHS:
Yes
HTS:
8536509050
COO:
US
ECCN:
EAR99
Supplier Standard Pack
1
Insulation Material:
Nylon
FEATURES:
· Mounts in panels from 1.57 (.062) to 3.18 (.125) thick.
· Complies to MIL-P-55149/8.
MATERIALS:
Body: Nickel plated brass
“O” Rings and Cap: Silicon rubber
Finish: Gold plated brass
Hardware: Hex nut, Split lockwasher, Brass washer, Nylon washer, “O” Rings, Body, Cap
Markings: “PB08NA01” for Black Binding Posts
“PB08NA02” for Red Binding Posts
RATINGS:
Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 1200 WVDC Max.
Operating Temperature: +115ºC (+239ºF) Max.
Current: 15 Amperes
Search Keywords:
PB08NA01
IN STOCK:
0
Factory Lead-Time
12 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$38.95
$38.95
10
$37.78
$377.80
25
$36.27
$906.75
50
$34.81
$1,740.50
100
$33.42
$3,342.00
250
$32.08
$8,020.00
500
+
$30.48
$15,240.00
Tools/3D Models

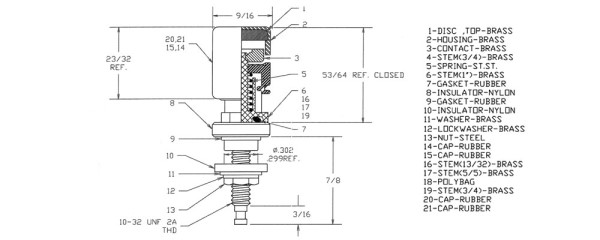

Technical Drawing
Product Guides
Datasheet
