PW174KB2403F01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

PW174KB2403F01

SL Power / Advanced Energy

AC/DC Adapter - Desktop - 64.8 Watts: 24V @ 2.7A - IEC 320-C14 Inlet

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
PW174KB2403F01
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Overload Protection:
Yes
Output Connector Polarity:
Center Positive
Mounting:
External
Adapter Color:
Black
Output Connector Angle:
Straight
Dimensions L x W x H(in):
4.26 x 2.68 x 1.58 in
Pin Count:
5
Input/Output Type:
AC/DC
Dimension:
108.0 x 68.0 x 40.0 mm
Typical Hold-Up Time:
80ms(Min) at 240Vac
Maximum Output Power:
64.8 W
Minimum DC Input Voltage:
Not App
Maximum Input Voltage:
264Vac
Maximum AC Input Voltage:
264
Dimensions L x W x H:
108.0 x 68.0 x 40.0 mm
Minimum Load (Amps):
0
PFC:
No
Maximum Output Current:
2.7 A
Line Regulation:
1.00 %
CoC Tier:
No
Over Voltage Protection:
Yes
Power:
64.8 W
Package Type:
Desktop
Thermal Protection:
No
Power Indicator:
No
Safety Approvals:
CE, cULus
Power Rating:
64.8 W
Output Connector Diameters:
2.5x5.5 mm
Mounting Style:
External
Output Voltage:
24 VDC
Typical Inrush Current:
Not Spec'd
Style:
Desktop Adapter
Operating Temperature:
0 to 40 °C
Packaging:
N/A
AC Input Voltage:
90 to 264
Maximum DC Input Voltage:
Not App
Minimum Isolation Voltage:
3000 VAC
Input Frequency:
47 to 63 Hz
DOE Efficiency Level:
No
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Family:
PW174KB
AC Input Current - Maximum:
1.5A at 90Vac
Input Voltage:
90 to 264 VAC
Type:
Regulated-Switching
Safety Class:
None
Dimensions LxWxH:
4.26 x 2.68 x 1.58 in
AC Input Current - Typical:
Not Spec'd
Minimum AC Input Voltage:
90
Short Circuit Protection:
Yes
Grade:
Commercial
Number of Outputs:
1
DC Input Voltage:
Not App
Maximum Input Current:
1.5A at 90Vac
Supplier Package:
N/A
Efficiency:
Not Spec'd
Output Cord Length:
1.5m (59.1in)
Load Regulation:
5.00 %
MOPP:
Not App
Input Connector Type:
IEC 320-C14
Output Current:
2.7 A
Ripple & Noise:
240 mV
Protection:
Overload,Over Voltage,Short Circuit
Minimum Input Voltage:
90 VAC
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 64.8 Watts: 24V @ 2.7A - IEC 320-C14 Inlet
Search Keywords:
PW174KB2403F01
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

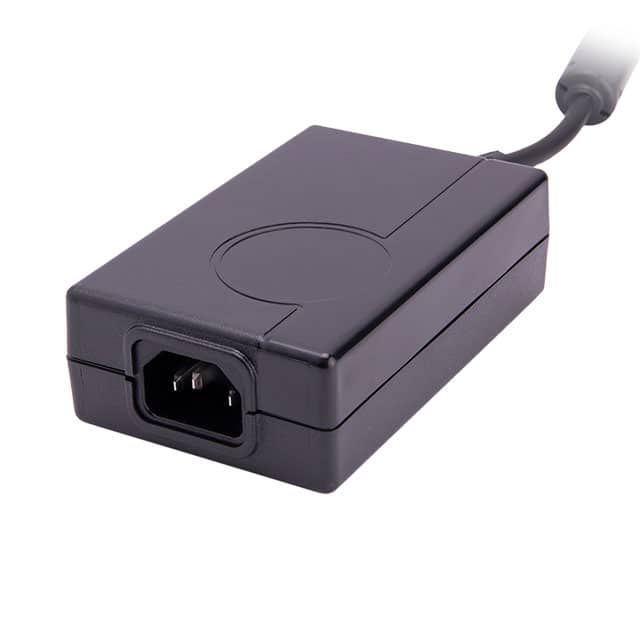

RECOMMENDED REPLACEMENT
TE60A2403F01
TE60A2403F01
VIEW PRODUCT
