MW172KB0903B01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

MW172KB0903B01

SL Power / Advanced Energy

AC/DC Adapter - Wall Mount - 18 Watts: 9V @ 2A - NA Intch Input Blades - Medical

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
MW172KB0903B01
RoHS:
Yes
HTS:
8504409510
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Minimum AC Input Voltage:
90
Minimum Input Voltage:
90 VAC
Maximum DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
Grade:
Medical
AC Input Current - Maximum:
0.58A
Typical Inrush Current:
Not Spec'd
Safety Class:
None
Input Connector Type:
Interchangeable-NA Blades (U.S. and Others)
Line Regulation:
1.00 %
Thermal Protection:
No
Output Connector Polarity:
Center Positive
Package Type:
Wall Plug
Maximum Input Current:
Not Spec'd
Maximum AC Input Voltage:
264
Maximum Output Current:
2.0 A
Adapter Color:
Black
Minimum Isolation Voltage:
5656Vdc/4000Vac
Minimum DC Input Voltage:
Not App
MOPP:
No
Maximum Input Voltage:
264Vac
Input Frequency:
47 to 63 Hz
Dimensions L x W x H:
84.0 x 46.0 x 32.0 mm
Output Type:
Fixed
Mounting:
External
AC Input Voltage:
90 to 264
Family:
MW172KB
Dimensions L x W x H(in):
3.31 x 1.82 x 1.26 in
Power Indicator:
No
Dimensions LxWxH:
3.31 x 1.82 x 1.26 in
Output Connector Angle:
Straight
Style:
WallMount
Output Voltage:
9 VDC
Minimum Load (Amps):
0
Load Regulation:
5.00 %
Over Voltage Protection:
No
Power:
18 W
Ripple & Noise:
90 mV
Supplier Package:
N/A
Output Cord Length:
1.8m (70.9in)
PFC:
No
Number of Outputs:
1
Protection:
Overload,Short Circuit
Typical Hold-Up Time:
18ms(Min) at 115Vac
Operating Temperature:
0 to 40 °C
Output Connector Diameters:
2.5x5.5 mm
Overload Protection:
Yes
Efficiency:
Not Spec'd
Packaging:
N/A
Short Circuit Protection:
Yes
AC Input Current - Typical:
Not Spec'd
Input Voltage:
90 to 264 VAC
DC Input Voltage:
Not App
DOE Efficiency Level:
No
Mounting Style:
External
Safety Approvals:
cULus
Maximum Output Power:
18 W
Input/Output Type:
AC/DC
Pin Count:
4
Power Rating:
18 W
Type:
Regulated-Switching
Dimension:
84.0 x 46.0 x 32.0 mm
CoC Tier:
No
Output Current:
2.0 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 9V @ 2A - NA Intch Input Blades - Medical
Search Keywords:
MW172KB0903B01
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

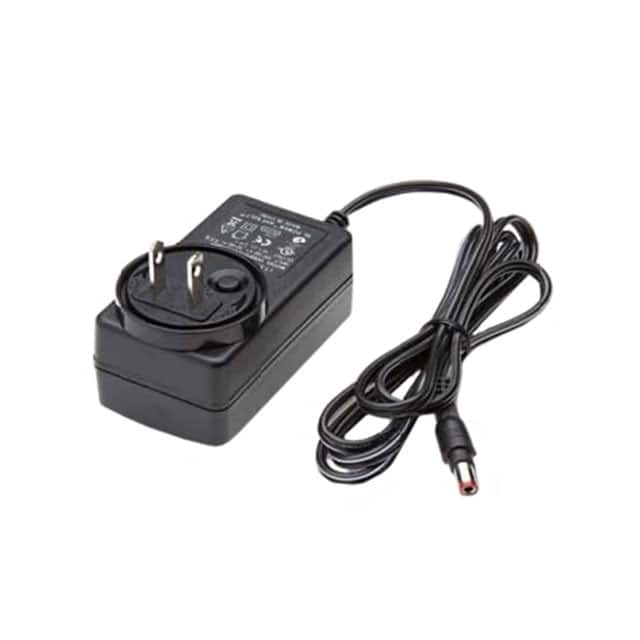

RECOMMENDED REPLACEMENT
ME20A0903B01
ME20A0903B01
