MENT1220A2851F01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

MENT1220A2851F01

SL Power / Advanced Energy

AC/DC Adapter - Desktop - 220 Watts: 28V @ 7.9A - IEC 320-C14 Inlet - Medical

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
MENT1220A2851F01
RoHS:
Yes
HTS:
8504409530
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Voltage:
264Vac
Line Regulation:
0.50 %
Input/Output Type:
AC/DC
Output Connector Polarity:
Not App
Power Rating:
220 W
Maximum Input Current:
4.0/1.5A at 115/230Vac
Style:
Desktop Adapter
Number of Outputs:
1
Packaging:
N/A
DOE Efficiency Level:
No
AC Input Voltage:
90 to 264
Short Circuit Protection:
Yes
Minimum Input Voltage:
90 VAC
Pin Count:
7
MOPP:
No
Family:
MENT1220
AC Input Current - Maximum:
4.0/1.5A at 115/230Vac
Grade:
Medical
Output Type:
Fixed
Minimum Isolation Voltage:
4000 VAC
Power Indicator:
No
Power:
220 W
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
Minimum Load (Amps):
0
Overload Protection:
Yes
Input Frequency:
47 to 63 Hz
Type:
Regulated-Switching
Dimensions LxWxH:
8.43 x 4.26 x 1.85 in
Load Regulation:
3.00 %
AC Input Current - Typical:
Not Spec'd
Output Connector Angle:
Not App
CoC Tier:
No
Input Voltage:
90 to 264 VAC
Mounting:
External
Dimensions L x W x H(in):
8.43 x 4.26 x 1.85 in
Output Connector Diameters:
Not App
Output Cord Length:
1.0m (39.4in)
Safety Class:
None
Safety Approvals:
CE, cRUus
Dimensions L x W x H:
214.0 x 108.0 x 47.0 mm
Mounting Style:
External
Input Connector Type:
IEC 320-C14
Typical Inrush Current:
75A(Max) at 264Vac
Adapter Color:
Black
Operating Temperature:
0 to 70 °C
Ripple & Noise:
280 mV
Protection:
Overload,Short Circuit,Over Voltage
Over Voltage Protection:
Yes
Typical Hold-Up Time:
21ms(Min) at 100Vac
PFC:
No
Maximum AC Input Voltage:
264
Maximum Output Current:
7.9 A
Maximum Output Power:
220 W
Efficiency:
88(Typ) %
Dimension:
214.0 x 108.0 x 47.0 mm
Supplier Package:
N/A
Minimum AC Input Voltage:
90
Maximum DC Input Voltage:
Not App
Output Current:
7.9 A
Output Connector Type:
Molex 39-01-2060
DC Input Voltage:
Not App
Output Voltage:
28 VDC
Thermal Protection:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 220 Watts: 28V @ 7.9A - IEC 320-C14 Inlet - Medical
Search Keywords:
MENT1220A2851F01
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

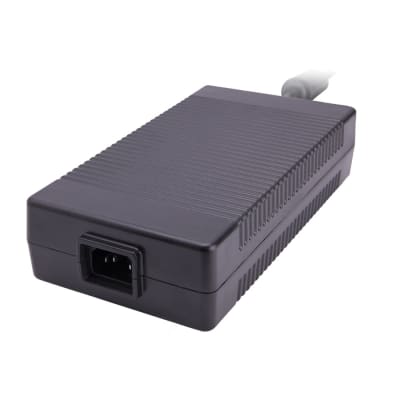

RECOMMENDED REPLACEMENT
ME240A2851F01
