MENB1020A1203F01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

MENB1020A1203F01

SL Power / Advanced Energy

Plug-In Adapter Single-OUT 12V 1.5A 18W Medical

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
MENB1020A1203F01
RoHS:
Yes
HTS:
8504409510
COO:
VN
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Outputs:
1
Power:
18 W
Typical Hold-Up Time:
18/60ms(Min) at 115/230Vac
Dimensions L x W x H:
84.0 x 47.0 x 32.3 mm
Power Rating:
18 W
Maximum Output Current:
1.5 A
Minimum Isolation Voltage:
5656 VDC
Supplier Package:
N/A
Safety Class:
No
Output Connector Angle:
Straight
Typical Inrush Current:
60A(Max)
AC Input Current - Typical:
0.45A at 100Vac
Protection:
Overload,Short Circuit
Maximum Input Voltage:
240Vac
Adapter Color:
Black
Input/Output Type:
AC/DC
Packaging:
N/A
Over Voltage Protection:
No
Minimum Load (Amps):
0
Mounting:
External
Style:
Desktop Adapter
DC Input Voltage:
Not App
Type:
Regulated-Switching
Output Type:
Fixed
Minimum Input Voltage:
100Vac
Pin Count:
N/A
Efficiency:
Not Spec'd
Maximum AC Input Voltage:
240
Family:
MENB1020
Load Regulation:
5.00 %
Grade:
Commercial
Output Current:
1.5 A
Maximum DC Input Voltage:
Not App
CoC Tier:
No
Maximum Input Current:
0.45 A
Dimensions L x W x H(in):
3.31 x 1.85 x 1.28 in
Minimum DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
Input Connector Type:
IEC 320-C14
Minimum AC Input Voltage:
100
Power Indicator:
No
Line Regulation:
1.00 %
Overload Protection:
Yes
PFC:
No
Output Connector Polarity:
Center Positive
Short Circuit Protection:
Yes
AC Input Current - Maximum:
0.45A
Ripple & Noise:
120 mV
Dimension:
84 x 47 x 32.3 mm
DOE Efficiency Level:
V
Package Type:
Wall Plug
Mounting Style:
External
Output Cord Length:
1.5m (59.1in)
AC Input Voltage:
100 to 240
Output Voltage:
12Vdc
Maximum Output Power:
18 W
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Thermal Protection:
No
Output Connector Diameters:
2.5x5.49 mm
Safety Approvals:
CE, cRUus
Input Voltage:
100 to 240Vac
MOPP:
No
Life Cycle:
Discontinued & Replaced
Plug-In Adapter Single-OUT 12V 1.5A 18W Medical
Search Keywords:
MENB1020A1203F01
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
63
Please Note: Tariffs may apply for U.S. shipments

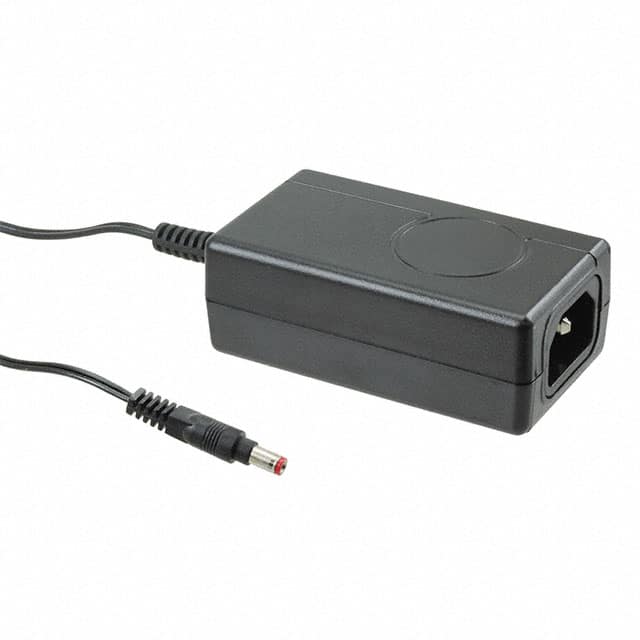

RECOMMENDED REPLACEMENT
ME20A1203F01
ME20A1203F01
VIEW PRODUCT
