MENB1020A1203B01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

MENB1020A1203B01

SL Power / Advanced Energy

AC/DC Adapter - Wall Mount - 18 Watts: 12V @ 1.5A - NA Intch Input Blades - Medical

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
MENB1020A1203B01
RoHS:
Yes
HTS:
8544604000
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Frequency:
47 to 63 Hz
AC Input Current - Typical:
Not Spec'd
PFC:
No
Output Connector Diameters:
2.5x5.5 mm
Ripple & Noise:
120 mV
Operating Temperature:
0 to 40 °C
Minimum Input Voltage:
90 VAC
Dimensions L x W x H(in):
3.27 x 1.85 x 1.28 in
DC Input Voltage:
Not App
Line Regulation:
1.00 %
Output Cord Length:
1.5m (59.1in)
Pin Count:
4
Output Type:
Fixed
DOE Efficiency Level:
No
Thermal Protection:
No
Maximum Input Current:
0.5A at 100Vac
Maximum Input Voltage:
264Vac
Output Connector Type:
Barrel - Female
Over Voltage Protection:
No
Dimensions L x W x H:
83.0 x 47.0 x 38.0 mm
Minimum DC Input Voltage:
Not App
Adapter Color:
Black
Output Connector Polarity:
Center Positive
Power Indicator:
No
Family:
MENB1020
Mounting:
External
Input Connector Type:
Interchangeable-NA Blades (U.S. and Others)
Minimum AC Input Voltage:
90
AC Input Voltage:
90 to 264
Grade:
Medical
Dimensions LxWxH:
3.27 x 1.85 x 1.28 in
Safety Class:
None
Short Circuit Protection:
Yes
Style:
WallMount
Packaging:
N/A
Safety Approvals:
CE, cRUus
CoC Tier:
No
Minimum Isolation Voltage:
5656Vdc/4000Vac
Type:
Regulated-Switching
Dimension:
83.0 x 47.0 x 38.0 mm
Package Type:
Wall Plug
MOPP:
2X
Minimum Load (Amps):
0
Maximum DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Overload Protection:
Yes
AC Input Current - Maximum:
0.5A at 100Vac
Input Voltage:
90 to 264 VAC
Efficiency:
Not Spec'd
Power:
18 W
Number of Outputs:
1
Typical Hold-Up Time:
18/60ms(Min) at 115/230Vac
Maximum Output Current:
1.5 A
Output Connector Angle:
Straight
Mounting Style:
External
Protection:
Overload,Short Circuit
Maximum Output Power:
18 W
Output Voltage:
12 VDC
Input/Output Type:
AC/DC
Typical Inrush Current:
60A(Max) at 264Vac
Load Regulation:
5.00 %
Power Rating:
18 W
Output Current:
1.5 A
Supplier Package:
N/A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 12V @ 1.5A - NA Intch Input Blades - Medical
Search Keywords:
MENB1020A1203B01
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
63
Please Note: Tariffs may apply for U.S. shipments

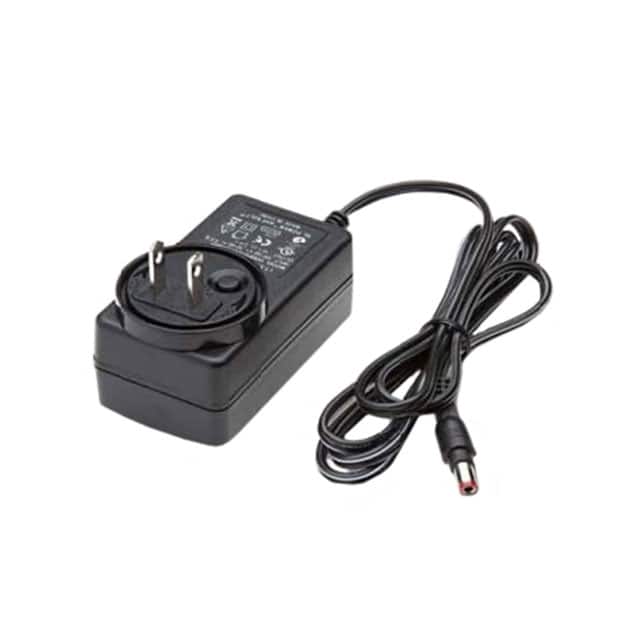

RECOMMENDED REPLACEMENT
ME20A1203B01
ME20A1203B01
VIEW PRODUCT
Product Guides
PDF Datasheet
