CENB1100A1251F01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

CENB1100A1251F01

SL Power / Advanced Energy

AC/DC Adapter - Desktop - 90 Watts: 12V @ 7.5A - IEC 320-C14 Inlet

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
CENB1100A1251F01
RoHS:
Yes
HTS:
8504409520
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Mounting Style:
External
Minimum Load (Amps):
0
Minimum Isolation Voltage:
4242 VDC
Dimensions L x W x H:
150.0 x 87.0 x 47.0 mm
Minimum AC Input Voltage:
90
Output Type:
Fixed
Input Connector Type:
IEC 320-C14
Maximum DC Input Voltage:
Not App
Overload Protection:
Yes
Family:
CENB1100
Pin Count:
7
Package Type:
Wall Plug
Thermal Protection:
No
Dimensions LxWxH:
5.91 x 3.43 x 1.85 in
Power Indicator:
No
Power:
90 W
Packaging:
N/A
Protection:
Overload,Short Circuit
Efficiency:
Not Spec'd
Typical Hold-Up Time:
18/60ms(Min) at 115/230Vac
Output Connector Type:
Molex 39-01-2060
Output Connector Angle:
Not App
Safety Approvals:
CE, cULus
DC Input Voltage:
Not App
Adapter Color:
Black
Output Voltage:
12 VDC
DOE Efficiency Level:
No
Output Connector Diameters:
Not App
Load Regulation:
5.00 %
Type:
Regulated-Switching
Ripple & Noise:
120 mV
Supplier Package:
N/A
Number of Outputs:
1
Input/Output Type:
AC/DC
Style:
Desktop Adapter
Mounting:
External
Line Regulation:
1.00 %
Power Rating:
90 W
Output Cord Length:
1.5m (59.1in)
AC Input Current - Maximum:
2.2A at 100Vac
Dimensions L x W x H(in):
5.91 x 3.43 x 1.85 in
Maximum Output Power:
90 W
Input Voltage:
90 to 264 VAC
MOPP:
Not App
Output Connector Polarity:
Not App
Maximum Output Current:
7.5 A
AC Input Current - Typical:
Not Spec'd
Dimension:
150.0 x 87.0 x 47.0 mm
Safety Class:
None
Maximum Input Current:
2.2A at 100Vac
CoC Tier:
No
Grade:
Commercial
Short Circuit Protection:
Yes
Over Voltage Protection:
No
Maximum Input Voltage:
264Vac
Output Current:
7.5 A
Input Frequency:
47 to 63 Hz
AC Input Voltage:
90 to 264
Minimum Input Voltage:
90 VAC
Typical Inrush Current:
60A(Max) at 264Vac
Maximum AC Input Voltage:
264
Operating Temperature:
0 to 40 °C
PFC:
No
Minimum DC Input Voltage:
Not App
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 90 Watts: 12V @ 7.5A - IEC 320-C14 Inlet
Search Keywords:
CENB1100A1251F01
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
25

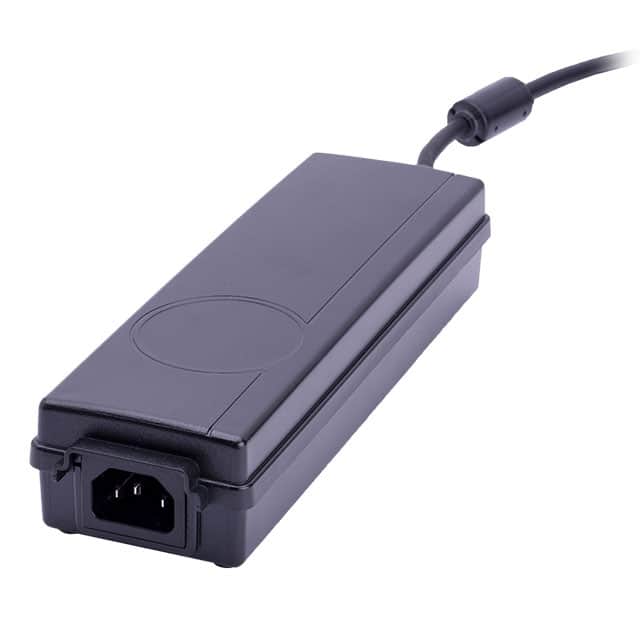

RECOMMENDED REPLACEMENT
TE120A1251F01
TE120A1251F01
VIEW PRODUCT
