CENB1030A0503B01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

CENB1030A0503B01

SL Power / Advanced Energy

AC/DC Adapter - Wall Mount - 20 Watts: 5V @ 4A - NA Input Blades

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
CENB1030A0503B01
RoHS:
Yes
HTS:
8538908140
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Input Voltage:
90 to 264 VAC
Typical Inrush Current:
60A(Max) at 264Vac
Maximum AC Input Voltage:
264
Minimum Isolation Voltage:
4242 VDC
Protection:
Overload,Short Circuit
Safety Approvals:
CE, cRUus
Typical Hold-Up Time:
18/60ms(Min) at 115/230Vac
DOE Efficiency Level:
No
Input Connector Type:
NA Blades (U.S. and Others)
Dimensions L x W x H:
84.0 x 47.0 x 32.3 mm
Load Regulation:
5.00 %
Operating Temperature:
0 to 40 °C
Number of Outputs:
1
Supplier Package:
N/A
DC Input Voltage:
Not App
Minimum Load (Amps):
0
Input/Output Type:
AC/DC
Maximum Input Voltage:
264Vac
Dimensions LxWxH:
3.76 x 2.13 x 1.22 in
Efficiency:
Not Spec'd
Packaging:
N/A
Maximum Output Current:
4.0 A
Safety Class:
None
CoC Tier:
No
Output Connector Angle:
Straight
Dimensions L x W x H(in):
3.76 x 2.13 x 1.22 in
Mounting:
External
Dimension:
84.0 x 47.0 x 32.3 mm
Minimum DC Input Voltage:
Not App
Overload Protection:
Yes
Minimum AC Input Voltage:
90
Over Voltage Protection:
No
PFC:
No
Family:
CENB1030
Output Connector Type:
Barrel - Female
Output Cord Length:
1.5m (59.1in)
AC Input Current - Typical:
Not Spec'd
Maximum DC Input Voltage:
Not App
Package Type:
Wall Plug
Style:
WallMount
Output Current:
4.0 A
Thermal Protection:
No
Type:
Regulated-Switching
MOPP:
Not App
Power Rating:
20 W
Short Circuit Protection:
Yes
Output Connector Diameters:
2.5x5.5 mm
AC Input Voltage:
90 to 264
Power:
20 W
Pin Count:
4
Maximum Input Current:
0.9A at 100Vac
Maximum Output Power:
20 W
AC Input Current - Maximum:
0.9A at 100Vac
Input Frequency:
47 to 63 Hz
Power Indicator:
No
Minimum Input Voltage:
90 VAC
Adapter Color:
Black
Line Regulation:
1.00 %
Grade:
Commercial
Mounting Style:
External
Output Voltage:
5 VDC
Ripple & Noise:
50 mV
Output Type:
Fixed
Output Connector Polarity:
Center Positive
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 20 Watts: 5V @ 4A - NA Input Blades
Search Keywords:
CENB1030A0503B01
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
63

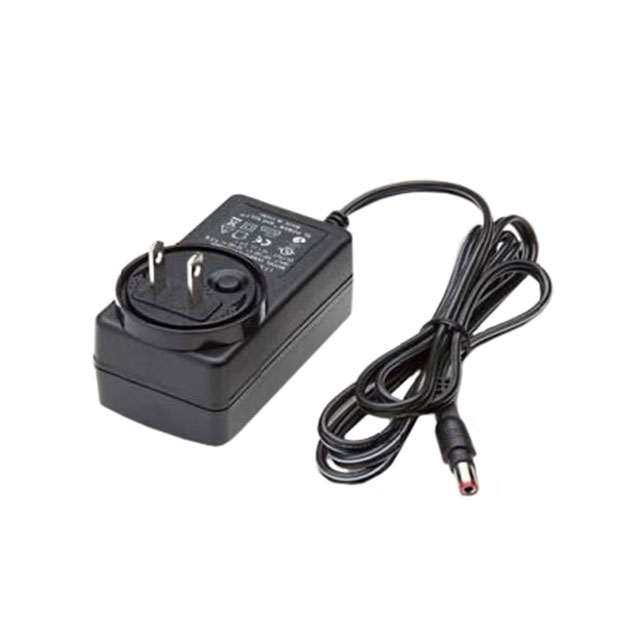

RECOMMENDED REPLACEMENT
TE30A0503B01
TE30A0503B01
VIEW PRODUCT
