CENB1020A0503F01 by sl power / advanced energy
DATA SHEET

CENB1020A0503F01

SL Power / Advanced Energy

AC/DC Adapter - Desktop - 15 Watts: 5V @ 3A - IEC 320-C14 Inlet

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
CENB1020A0503F01
RoHS:
Yes
HTS:
8504409510
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Dimensions LxWxH:
3.27 x 1.85 x 1.5 in
Thermal Protection:
No
Output Connector Diameters:
2.5x5.5 mm
Minimum Isolation Voltage:
4242 VDC
Line Regulation:
1.00 %
Output Current:
3.0 A
Adapter Color:
Black
DOE Efficiency Level:
No
Output Connector Polarity:
Center Positive
AC Input Voltage:
90 to 264
Supplier Package:
N/A
Overload Protection:
Yes
Minimum Input Voltage:
90 VAC
Power Indicator:
No
Output Type:
Fixed
Pin Count:
5
Maximum AC Input Voltage:
264
Type:
Regulated-Switching
Safety Class:
None
Over Voltage Protection:
No
Operating Temperature:
0 to 40 °C
Mounting:
External
AC Input Current - Typical:
Not Spec'd
AC Input Current - Maximum:
0.45A at 100Vac
CoC Tier:
No
Input Connector Type:
IEC 320-C14
Output Connector Angle:
Straight
Protection:
Overload,Short Circuit
Dimensions L x W x H(in):
3.27 x 1.85 x 1.50 in
Ripple & Noise:
50 mV
Minimum AC Input Voltage:
90
Package Type:
Desktop
Maximum Output Power:
15 W
Typical Inrush Current:
60A(Max) at 264Vac
Power:
15 W
Input Voltage:
90 to 264 VAC
Mounting Style:
External
Maximum Output Current:
3.0 A
Maximum Input Current:
0.45A at 100Vac
Minimum DC Input Voltage:
Not App
Family:
CENB1020
Power Rating:
15 W
MOPP:
Not App
DC Input Voltage:
Not App
Style:
Desktop Adapter
Maximum DC Input Voltage:
Not App
PFC:
No
Packaging:
N/A
Grade:
Commercial
Short Circuit Protection:
Yes
Input Frequency:
47 to 63 Hz
Dimension:
84.0 x 47.0 x 32.3 mm
Input/Output Type:
AC/DC
Output Cord Length:
1.5m (59.1in)
Minimum Load (Amps):
0
Dimensions L x W x H:
84.0 x 47.0 x 32.3 mm
Output Connector Type:
Barrel - Female
Typical Hold-Up Time:
18/60ms(Min) at 115/230Vac
Number of Outputs:
1
Load Regulation:
5.00 %
Efficiency:
Not Spec'd
Maximum Input Voltage:
264Vac
Output Voltage:
5 VDC
Safety Approvals:
CE, cULus
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 15 Watts: 5V @ 3A - IEC 320-C14 Inlet
Search Keywords:
CENB1020A0503F01
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

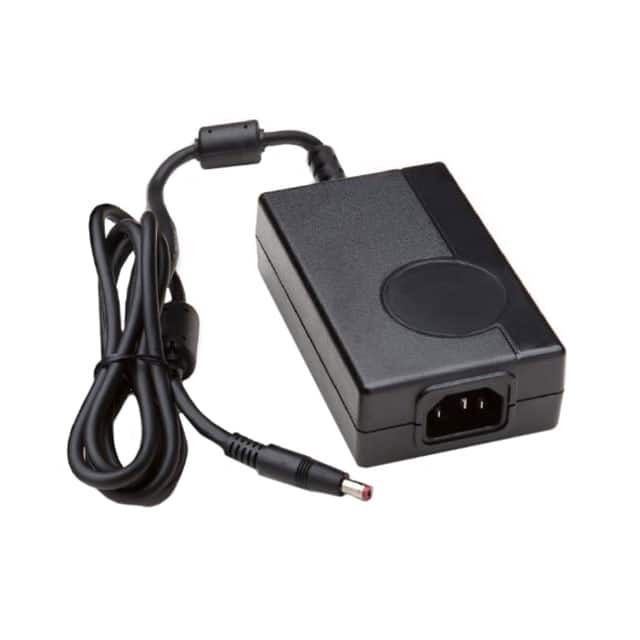

RECOMMENDED REPLACEMENT
TE20A0503F01
TE20A0503F01
VIEW PRODUCT
