CENB1010A1203B01 by sl power / advanced energy
Image is representational - see mfr. specs
DATA SHEET

CENB1010A1203B01

SL Power / Advanced Energy

AC/DC Adapter - Wall Mount - 12 Watts: 12V @ 1A - NA Input Blades

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
SL Power / Advanced Energy
Part No:
CENB1010A1203B01
RoHS:
Yes
HTS:
8504409510
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Output Current:
1.0 A
Minimum Load (Amps):
0
Maximum Output Power:
12 W
Operating Temperature:
0 to 40 °C
Minimum Isolation Voltage:
4242 VDC
Power:
12 W
Type:
Regulated-Switching
Output Connector Type:
Barrel - Female
Family:
CENB1010
Ripple & Noise:
120 mV
Safety Class:
None
Minimum Input Voltage:
90 VAC
Thermal Protection:
No
Output Type:
Fixed
Output Connector Polarity:
Center Positive
Adapter Color:
Black
Safety Approvals:
CE, cRUus
Maximum Output Current:
1.0 A
Minimum DC Input Voltage:
Not App
Style:
WallMount
Number of Outputs:
1
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
Dimension:
84.0 x 47.0 x 32.3 mm
Line Regulation:
1.00 %
Grade:
Commercial
Maximum Input Voltage:
264Vac
Short Circuit Protection:
Yes
DOE Efficiency Level:
No
Typical Hold-Up Time:
18/60ms(Min) at 115/230Vac
Mounting Style:
External
Input Frequency:
47 to 63 Hz
Maximum AC Input Voltage:
264
Maximum DC Input Voltage:
Not App
DC Input Voltage:
Not App
Dimensions L x W x H(in):
3.27 x 1.85 x 1.46 in
Minimum AC Input Voltage:
90
Pin Count:
5
Power Indicator:
No
AC Input Voltage:
90 to 264
Output Connector Diameters:
2.5 x 5.5 mm
AC Input Current - Maximum:
0.27A at 100Vac
MOPP:
Not App
Typical Inrush Current:
60A(Max) at 264Vac
Input Voltage:
90 to 264 VAC
Overload Protection:
Yes
PFC:
No
AC Input Current - Typical:
Not Spec'd
Power Rating:
12 W
Supplier Package:
N/A
Input Connector Type:
NA Blades (U.S. and Others)
Dimensions L x W x H:
84.0 x 47.0 x 32.3 mm
Packaging:
N/A
Package Type:
Desktop
Output Connector Angle:
Straight
Input/Output Type:
AC/DC
Over Voltage Protection:
No
Mounting:
External
Output Voltage:
12 VDC
Protection:
Overload,Short Circuit
Maximum Input Current:
0.27A at 100Vac
Output Cord Length:
1.5m (59.1in)
Dimensions LxWxH:
3.27 x 1.85 x 1.46 in
CoC Tier:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 12 Watts: 12V @ 1A - NA Input Blades
Search Keywords:
CENB1010A1203B01
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
63

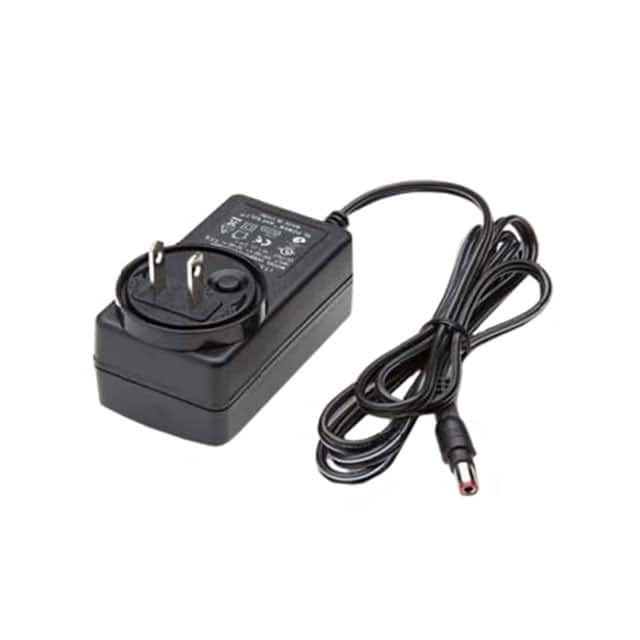

RECOMMENDED REPLACEMENT
TE10A1203B01
TE10A1203B01
VIEW PRODUCT
