CKRA2420E by sensata / crydom
Image is representational - see mfr. specs

CKRA2420E

Sensata / Crydom

Solis-State Relay - Control Voltage 18-36 VAC - Typical Input Current 10 mA/24VAC- LED Green Input Status - Output 24-280 VAC - Max Load Current 20 A - Din Rail - 4 Pins .. see full description

RoHS Compliant
EACH Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CKRA2420E
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280(RMS) V
Maximum Output Current:
20(RMS) A
Output Device:
SCR
Input Type:
AC
Input Voltage:
36(RMS) V
Mounting:
DIN Rail
Circuit Arrangement:
1 Form A
Dimension:
81.9 x 22.5 x 99 mm
Life Cycle:
Discontinued & Replaced
The CKRA2420E is a solid-state relay without overvoltage protection. Input control voltage range is 18-36 VAC. Operating voltage is 24-280 VAC and the max load current is 20 A. Max wire size is #10 AWG (3mm). I/O isolation voltage is 4000 Vrms. Mounting type: din rail, screw. Switching type: zero voltage turn-on.
Search Keywords:
CKRA2420E
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT

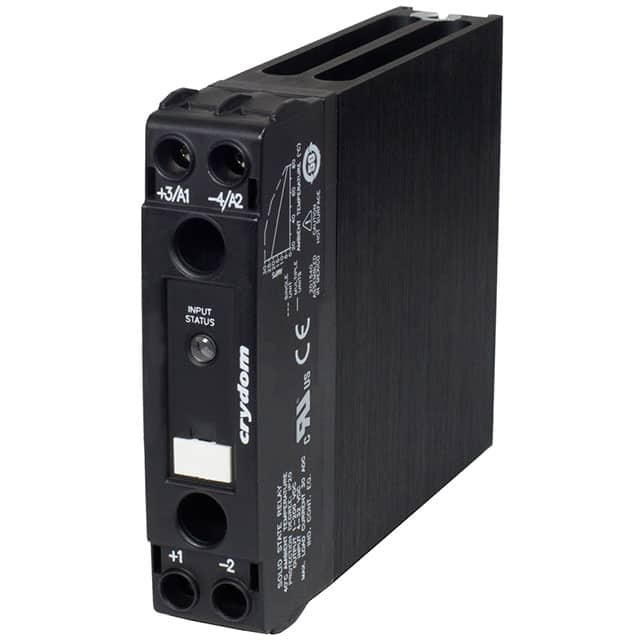

DR2260A20U
DR2260A20U
VIEW PRODUCT
