SACC-MR-5SC M SCO

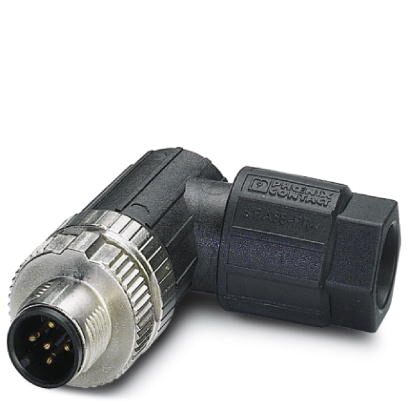

Phoenix ContactConnector, 5-position, Plug angled M12 SPEEDCON, A-coded, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, External cable diameter 4 mm ... 8 mm
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
SACC-MR-5SC M SCO
Alias/AKA:
1432570
RoHS:
Yes
HTS:
8536694020
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
1
Contact Plating:
Gold over Nickel
Shell Size / Insert Arrangement:
N/A
Family:
1432570
Number of Ports:
1
Contact Gender:
M
Mounting:
Cable Mount
Type:
Sensor Actuator
Dimension:
43 x 51 x 19 mm
Maximum Current Rating:
4 A
Packaging:
N/A
Shell Material/Plating:
Brass/Nickel
Number of Contacts:
5
Operating Temperature:
N/A
Mating Style:
Screw Lock
Contacts Classification:
5Signal
Termination Method:
N/A
Ingress Protection:
IP67
Contact Material:
Bronze
Number of Terminals:
N/A
Gender:
PL
Maximum Voltage Rating:
60 V
Body Orientation:
N/A
Strain Relief:
No
Life Cycle:
Discontinued & Replaced
Connector, 5-position, Plug angled M12 SPEEDCON, A-coded, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, External cable diameter 4 mm ... 8 mm
Search Keywords:
SACCMR5SCMSCO
This product is not in stock and cannot be back-ordered
Please Note:
Tariffs may apply for U.S. shipments
Product Guides
Datasheet
Accessories
TSD 04 SAC
Torque screwdriver - with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connect ...
PROT-M12 FS-PA-CHAIN
M12 sealing cap made of plastic with fixing band - for sensor cables - for free M12 plugs
TSD-M SAC-BIT ADAPTER
Adapter bit for TSD-M...torque tools - E6.3-1/4" drive with 4 mm hexagon to accommodate SA ...
SACC BIT M12-D20
Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm - for 4 mm h ...
