SACC-M12MS-5PL M
Phoenix ContactConnector - Universal - 5-position - unshielded - Plug straight M12 - A-coded - Push-in connection - knurl material: Zinc die-cast - nickel-plated - external cable diameter 4 mm ... 8 mm .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
SACC-M12MS-5PL M
RoHS:
Yes
HTS:
8544429090
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
1
Ingress Protection:
IP65/IP67
Family:
1424649
Number of Ports:
1
Number of Terminals:
5
Dimension:
60 x 19 mm
Termination Method:
Spring Cage
Contact Gender:
Pin
Number of Contacts:
5
Body Orientation:
Straight
Shell Material/Plating:
Zinc Die Cast/Nickel
Type:
M12 Circular
Contact Material:
Bronze
Maximum Current Rating:
4 A
Gender:
PL
Operating Temperature:
-40 to 85 °C
Contact Plating:
Gold over Nickel
Maximum Voltage Rating:
60 V

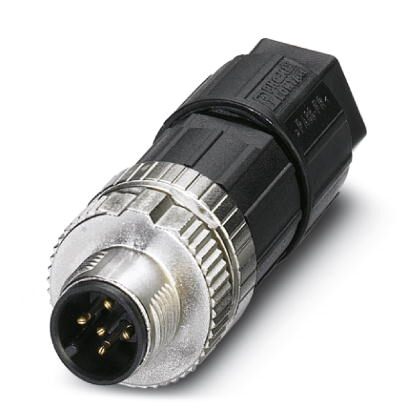

The PHOENIX CONTACT part SACC-M12MS-5PL M is a versatile 5-position connector that is perfect for a wide range of applications. It features an unshielded design and a straight plug M12 configuration with A-coded pins. The connector uses a push-in connection method, ensuring easy and secure installation. Made from high-quality zinc die-cast material with a nickel-plated finish, this connector offers excellent durability and corrosion resistance. It is designed to accommodate external cables with a diameter ranging from 4 mm to 8 mm, making it compatible with various cable types.
Search Keywords:
SACCM12MS5PLM
IN STOCK:
0
Minimum Order Quantity:
2
Factory Lead-Time
5 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
2
$14.98
$29.96
10
+
$14.23
$142.30
