SACC-M12FSB-5SC SH

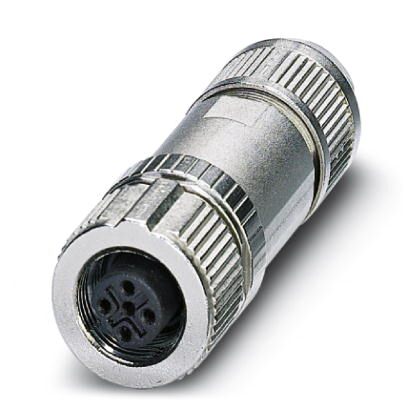

Phoenix ContactConnector, 5-position, shielded, Socket straight M12, B-coded, Spring-cage connection, knurl material: Nickel-plated brass, External cable diameter 4 mm ... 8 mm
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
SACC-M12FSB-5SC SH
Alias/AKA:
1513596
RoHS:
Yes
HTS:
8536694020
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
1
Operating Temperature:
-40 to 85 °C
Gender:
RCP
Ingress Protection:
IP67
Number of Contacts:
5
Shell Material/Plating:
Brass/Nickel
Number of Terminals:
5
Body Orientation:
Straight
Contact Gender:
SKT
Termination Method:
Spring Cage
Mating Style:
N/A
Maximum Current Rating:
4 A
Type:
M12 Circular
Contact Material:
Bronze
Contacts Classification:
5Signal
Dimension:
59 x 19 mm
Packaging:
N/A
Number of Ports:
1
Mounting:
Cable Mount
Family:
15 13 59 6
Contact Plating:
Gold over Nickel
Maximum Voltage Rating:
60,48 VDC|VAC
Shell Size / Insert Arrangement:
N/A
Strain Relief:
No
Life Cycle:
Discontinued & Replaced
Connector, 5-position, shielded, Socket straight M12, B-coded, Spring-cage connection, knurl material: Nickel-plated brass, External cable diameter 4 mm ... 8 mm
Search Keywords:
SACCM12FSB5SCSH
This product is not in stock and cannot be back-ordered
Please Note:
Tariffs may apply for U.S. shipments
Product Guides
Datasheet
Accessories

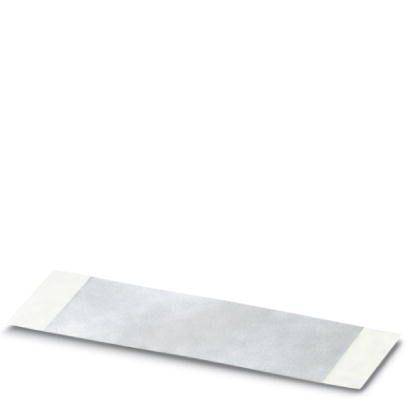

ALU-SB
Shielding foil - for fixing the braided shield of shielded cables. Length: 4 cm - width: 1 ...

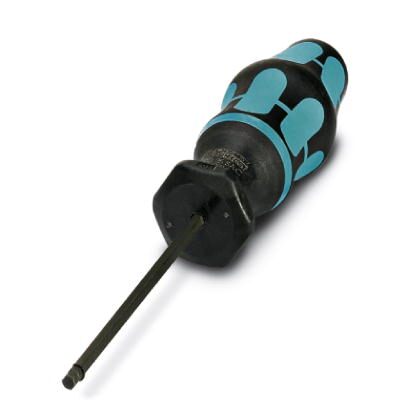

TSD 08 SAC
Torque screw driver with preset torque of 0.8 Nm - with 4 mm hexagon for accommodating SAC ...
TSD 04 SAC
Torque screwdriver - with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connect ...
TSD-M SAC-BIT ADAPTER
Adapter bit for TSD-M...torque tools - E6.3-1/4" drive with 4 mm hexagon to accommodate SA ...
VS-CABLE-STRIP-VARIO
Stripping tool, for the multi-level stripping of shielded cables

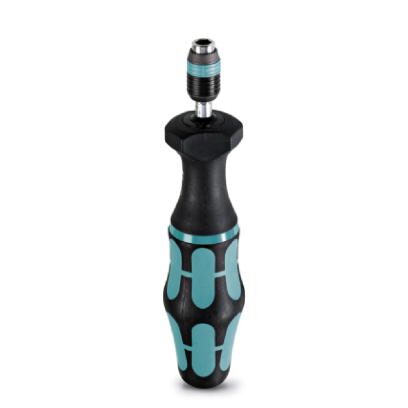

TSD-M 3NM
Torque screw driver - accuracy as per EN ISO 6789 standard - adjustable from 1.2 €‘ 3 Nm
SACC BIT M12-D20
Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm - for 4 mm h ...
