SACC-M12FSB-5CON-PG9 SH AU
Phoenix ContactBus system connector - PROFIBUS - INTERBUS - 5-position - shielded - Socket straight M12 - B-coded - Screw connection - knurl material: Zinc die-cast - nickel-plated - cable gland Pg9 - external cable diameter 6.5 mm ... 8.5 mm
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
SACC-M12FSB-5CON-PG9 SH AU
Alias/AKA:
1507777
RoHS:
Yes
HTS:
8536694020
COO:
HU
ECCN:
EAR99
Supplier Standard Pack
1
Dimension:
20 x 56 x 10 x 20 mm
Body Orientation:
Straight
Contacts Classification:
(5/5)Signal
Number of Contacts:
5/5
Ingress Protection:
IP67
Packaging:
N/A
Maximum Current Rating:
4 A
Contact Plating:
Gold
Shell Size / Insert Arrangement:
N/A
Mounting:
Cable Mount
Number of Terminals:
10
Family:
1507777
Contact Material:
Bronze
Contact Gender:
M/F
Maximum Voltage Rating:
60,48 VDC|VAC
Number of Ports:
2
Termination Method:
N/A
Shell Material/Plating:
Brass/Nickel
Type:
M12 Circular
Strain Relief:
No
Operating Temperature:
-40 to 85 °C
Gender:
RCP/PL
Mating Style:
Screw Lock
Bus system connector - PROFIBUS - INTERBUS - 5-position - shielded - Socket straight M12 - B-coded - Screw connection - knurl material: Zinc die-cast - nickel-plated - cable gland Pg9 - external cable diameter 6.5 mm ... 8.5 mm
Search Keywords:
SACCM12FSB5CONPG9SHAU
IN STOCK:
0
Factory Lead-Time
5 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
+
$30.89
$30.89
Please Note:
Tariffs may apply for U.S. shipments
Product Guides
Datasheet
Accessories
PROT-M12 MS-PA-CHAIN
M12 sealing cap with fixing band - for sensor cables - for free M12 sockets
TSD 04 SAC
Torque screwdriver - with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connect ...
TSD-M SAC-BIT ADAPTER
Adapter bit for TSD-M...torque tools - E6.3-1/4" drive with 4 mm hexagon to accommodate SA ...

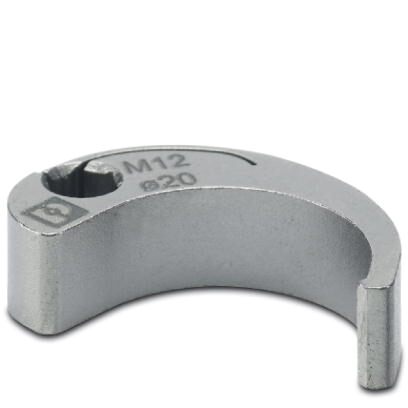

SACC BIT M12-D20
Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm - for 4 mm h ...
