MINI-PS-100-240AC/24DC/2 by phoenix contact
Image is representational - see mfr. specs
DATA SHEET

MINI-PS-100-240AC/24DC/2

Phoenix Contact

Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/2 A .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
MINI-PS-100-240AC/24DC/2
RoHS:
Yes
HTS:
8504407001
COO:
PL
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Style:
DIN Rail
Maximum Output Power:
48 W
Dimension:
107 x 45 x 99 mm
Output Type:
Fixed
Supplier Temperature Grade:
N/A
Packaging:
N/A
Output Connector Type:
Screw Terminal Block
Input Frequency:
45 to 65 Hz
Maximum DC Input Voltage:
350 V
Minimum Isolation Voltage:
3000 VAC
Pin Count:
8
Maximum Output Current:
2.0 A
Efficiency:
88(Min) %
Operating Temperature:
-25 to 70 °C
Output Voltage:
24 V
Type:
Switching
Minimum AC Input Voltage:
85 V
DC Input Voltage:
90 to 350 V
Maximum Input Current:
N/A
Mounting:
DIN Rail
Number of Outputs:
1
Maximum AC Input Voltage:
264 V
Supplier Package:
N/A
Minimum DC Input Voltage:
90 V
AC Input Voltage:
85 to 264 V
Family:
2938730
Input Connector Type:
Screw Terminal Block
Life Cycle:
Discontinued & Replaced
The MINI-PS-100-240AC/24DC/2 is a 48W 24V 2A DIN rail mounted MINI POWER Supply Unit for MCR technology, in measurement and control technology (MCR), modular electronics housing has become the industry standard. MINI POWER is the power supply unit to go with it. The devices are of flexible, special voltages and special versions. Easy-maintenance connection technology keyed COMBICON connectors Remote monitoring of output voltage via switching output Pluggable screw connection -25 to 70°C Operating temperature range IP20 Protection rating Applications Power Management, Communications & Networking, Sensing & Instrumentation
Search Keywords:
MINIPS100240AC24DC2
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

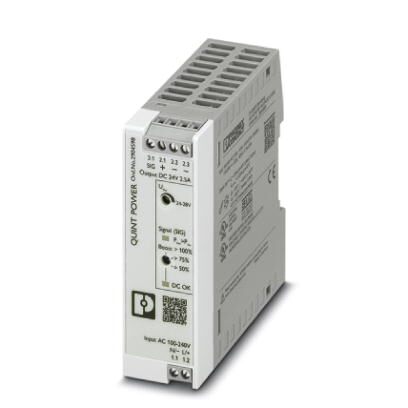

QUINT4-PS/1AC/24DC/2.5/SC
QUINT4-PS/1AC/24DC/2.5/SC
VIEW PRODUCT
