2938811

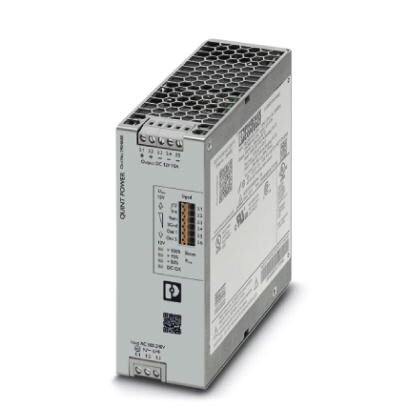

Phoenix ContactPower Supply; AC-DC; 12V; 10A; 85-264V In; Enclosed; DIN; Industrial; 120W; QUINT Series .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2938811
RoHS:
Yes
HTS:
8504407007
COO:
TH
ECCN:
EAR99
Supplier Standard Pack
1
Dimension:
130 x 85 x 130 mm
Packaging:
N/A
Minimum AC Input Voltage:
85 V
Type:
Switching
Output Connector Type:
Screw Terminal Block
Family:
2938811
Maximum Output Power:
120 W
Efficiency:
84(Min) %
Pin Count:
10
Mounting:
DIN Rail
Maximum DC Input Voltage:
350 V
Operating Temperature:
-25 to 70 °C
Number of Outputs:
1
Input Connector Type:
Screw Terminal Block
Input Frequency:
45 to 65 Hz
DC Input Voltage:
N/A
Output Type:
Fixed
Supplier Package:
N/A
Supplier Temperature Grade:
N/A
Output Voltage:
12 V
Minimum DC Input Voltage:
90 V
Maximum Output Current:
10 A
Style:
DIN Rail
Maximum AC Input Voltage:
264 V
Maximum Input Current:
N/A
Minimum Isolation Voltage:
2000 VAC
AC Input Voltage:
N/A
Life Cycle:
Discontinued & Replaced
Primary switched-mode power supply unit, 1-phase, output: 12 V DC /10 A. Series QUINT POWER Series
Configuration Enclosed
Current Rating 10 A
Output Current 10 A
Frequency 45 to 65 Hz
Height 5.118" (130mm)
Input Voltage 85-264 VAC
Mounting Type DIN Rail Mount
Maximum Operating Temperature 70 °C
Minimum Operating Temperature -25 °C
Type Industrial
Output Voltage 12 VDC
Width 3.346" (85mm)
Number of Outputs 1 Output
Operation Switching
Output Power 120 W
Voltage Rating 85 to 264 VAC
Voltage, Input Range 85-264 VAC
Primary Type AC-DC
Search Keywords:
2938811
This product is not in stock and cannot be back-ordered
