DATA SHEET

2938714

Phoenix Contact

Power Supply - AC DC - 5V - 3A - 85 to 264V In - Enclosed - DIN Rail - Industrial - 15W - MINI Series .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2938714
RoHS:
Yes
HTS:
8504407001
COO:
PL
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Frequency:
45 to 65 Hz
Pin Count:
8
Family:
2938714
Type:
Switching
AC Input Voltage:
N/A
Output Connector Type:
Screw Terminal Block
Minimum AC Input Voltage:
85 V
Efficiency:
73(Min) %
Maximum Output Current:
3 A
Dimension:
107 x 22.5 x 99 mm
Output Type:
Fixed
Number of Outputs:
1
DC Input Voltage:
N/A
Packaging:
N/A
Supplier Package:
N/A
Operating Temperature:
-25 to 70 °C
Input Connector Type:
Screw Terminal Block
Maximum DC Input Voltage:
350 V
Style:
DIN Rail
Minimum Isolation Voltage:
N/A
Output Voltage:
5 V
Mounting:
DIN Rail
Supplier Temperature Grade:
N/A
Minimum DC Input Voltage:
90 V
Maximum Input Current:
N/A
Maximum AC Input Voltage:
264 V
Maximum Output Power:
15 W
Life Cycle:
Discontinued & Replaced
MINI POWER power supplies for MCR technology In measurement and control technology (MCR), modular electronics housing has become the industry standard. MINI POWER is the power supply unit to go with it. The devices are flexible, thanks to special voltages and special versions. Series MINI Series Configuration Enclosed Output Current 3 A Frequency 45 to 65 Hz Height 3.898" (99mm) Input Voltage 100 VAC ; 110/115/120 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220/230/240 VAC ; 220 VAC ; 230 VAC ; 240 VAC Mounting Type DIN Rail Mount Maximum Operating Temperature 70 C Minimum Operating Temperature -25 C Type Industrial Output Voltage 5 VDC Width 0.886" (22.5mm) Number of Outputs 1 Output Operation Switching Output Power 15 W Voltage, Input Range 85-264 VAC Primary Type AC-DC
Search Keywords:
2938714
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

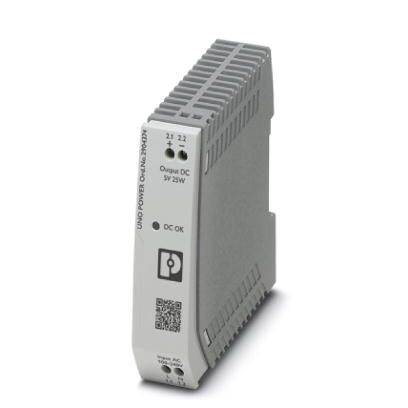

RECOMMENDED REPLACEMENT
2904374
2904374
VIEW PRODUCT
Product Guides
PDF Datasheet
