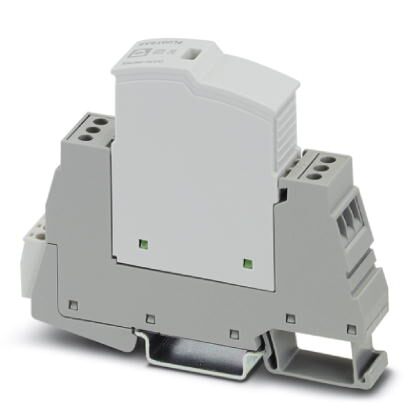

Image is representational - see mfr. specs

2905223

Pluggable device protection - according to type 3/class III - for 1-phase power supply networks with separate N and PE (3-conductor system: L1 - N - PE) - with integrated surge-proof fuse and remote indication contact. Also suitable for DC applications. .. see full description

RoHS Compliant

Packaging

Discontinued & Replaced

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

2905223

Alias/AKA:

PLT-SEC-T3-24-FM

RoHS:

Yes

HTS:

8536308000

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Attenuation:

N/A

Life Cycle:

Discontinued & Replaced

Pluggable device protection, according to type 3/class III, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with integrated surge-proof fuse and remote indication contact. Also suitable for DC applications. Color Traffic Grey A Ral 7042 Depth 74.5 mm (incl. DIN rail 7.5 mm) Height 90 mm Housing Material PA 6.6-FR Mounting Type DIN rail: 35 mm Number of Positions 2 Screw Type M3 Type DIN rail module, two-section, divisible Width 17.7 mm Approvals UL Recognized, cUL Recognized, cULus Recognized, KEMA-KEUR, CCA, IECEE CB Scheme, UL Recognized, cUL Recognized, EAC, cULus Recognized, GL Stripping Length 8 mm
