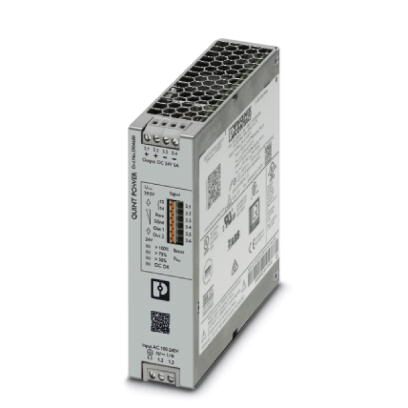

2904600 by phoenix contact
Image is representational - see mfr. specs
DATA SHEET

2904600

Phoenix Contact

Primary-switched QUINT POWER power supply with free choice of output characteristic curve - SFB (selective fuse breaking) technology - and NFC interface - input: 1-phase - output: 24 V DC/5 A .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2904600
Alias/AKA:
QUINT4-PS/1AC/24DC/5
RoHS:
Yes
HTS:
8504407007
COO:
TH
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum AC Input Voltage:
240 V
DC Input Voltage:
N/A
Pin Count:
14
Style:
DIN Rail
Output Type:
Fixed
Output Connector Type:
Screw Terminal Block
Maximum Input Current:
N/A
Output Voltage:
24 V
Number of Outputs:
1
Input Connector Type:
Screw Terminal Block
Minimum AC Input Voltage:
100 V
Supplier Temperature Grade:
N/A
Input Frequency:
50 to 60 Hz
Minimum DC Input Voltage:
110 V
Type:
Switching
Operating Temperature:
-25 to 70 °C
Packaging:
N/A
Minimum Isolation Voltage:
N/A
Maximum Output Power:
120 W
Maximum Output Current:
5(Typ) A
Efficiency:
89.2(Typ) %
Family:
2904600
Maximum DC Input Voltage:
250 V
Dimension:
131 x 36 x 130 mm
Mounting:
DIN Rail
AC Input Voltage:
N/A
Supplier Package:
N/A
The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface. The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application. Series QUINT POWER Series Configuration Enclosed Output Current 5 A Input Voltage 100 VAC ; 110/115/120 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220/230/240 VAC ; 220 VAC ; 230 VAC ; 240 VAC Mounting Type DIN Rail Mount Type Industrial Output Voltage 24 VDC Number of Outputs 1 Output Output Power 120 W Voltage, Input Range 85-264 VAC Primary Type AC-DC
Search Keywords:
2904600
IN STOCK: 0
Factory Lead-Time
11 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1 +
$224.03
$224.03
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
