2868648 by phoenix contact

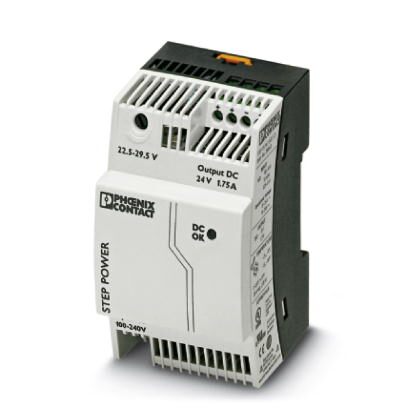

Image is representational - see mfr. specs
DATA SHEET

2868648

Phoenix Contact

Primary-switched STEP POWER power supply for DIN rail mounting - input: 1-phase - output: 24 V DC/1.75 A .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2868648
Alias/AKA:
STEP-PS/ 1AC/24DC/1.75
RoHS:
Yes
HTS:
8504407001
COO:
VN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Type:
Fixed
Input Connector Type:
Screw Terminal Block
Maximum Output Current:
3.75 A
Output Connector Type:
Screw Terminal Block
Input Frequency:
45 to 65 Hz
Supplier Package:
N/A
Style:
DIN Rail
Family:
2868648
Pin Count:
6
Maximum DC Input Voltage:
250 V
Mounting:
DIN Rail
Packaging:
N/A
Maximum Output Power:
90 W
Type:
Switching
Dimension:
61 x 54 x 90 mm
Supplier Temperature Grade:
N/A
Efficiency:
89(Min) %
Number of Outputs:
1
AC Input Voltage:
N/A
Operating Temperature:
-25 to 70 °C
Minimum Isolation Voltage:
3750 VAC
Minimum AC Input Voltage:
85 V
Minimum DC Input Voltage:
95 V
Output Voltage:
24 V
Maximum Input Current:
N/A
Maximum AC Input Voltage:
264 V
DC Input Voltage:
N/A
Phoenix Contact STEP POWER family of compact power supply units is particularly suitable for installation distributors and flat control panels. The power supply units are available with 24 V DC output voltage in four performance classes and widths and with the special voltages 5, 12, 15 and 48 V DC. Their high degree of efficiency and the low standby losses make for high power efficiency. Features Easy assembly on the DIN rail or panel Quick startup with LED function monitoring High operating safety due to long mains buffering under full load and high MTBF (> 500k h) Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package Wide temperature range of -25°C to +70°C Parallel connection possible for increased performance and redundancy
Search Keywords:
2868648
IN STOCK: 0
Factory Lead-Time
5 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1 +
$96.33
$96.33
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
