2866488 by phoenix contact
Image is representational - see mfr. specs
DATA SHEET

2866488

Phoenix Contact

AC/DC DIN Rail Power Supply (PSU) - ITE - 1 Output - 120 W - 12 VDC - 10 A. .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2866488
RoHS:
Yes
HTS:
8504407007
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum AC Input Voltage:
85 V
Minimum DC Input Voltage:
N/A
Dimension:
115 x 40 x 130 mm
Number of Outputs:
1
Minimum Isolation Voltage:
N/A
Mounting:
DIN Rail
Operating Temperature:
-25 to 70 °C
Family:
2866488
Type:
Switching
Output Connector Type:
Screw Terminal Block
Maximum AC Input Voltage:
264 V
Maximum Output Current:
10 A
Input Connector Type:
Screw Terminal Block
Packaging:
N/A
Maximum DC Input Voltage:
N/A
AC Input Voltage:
N/A
Supplier Package:
N/A
Style:
DIN Rail
Maximum Output Power:
120 W
Input Frequency:
45 to 65 Hz
Efficiency:
86(Min) %
Output Type:
Fixed
Supplier Temperature Grade:
N/A
Maximum Input Current:
N/A
Output Voltage:
12 V
DC Input Voltage:
N/A
Pin Count:
8
Life Cycle:
Discontinued & Replaced
The 2866488 is a 1-phase 1-output AC/DC DIN rail Power Supply Unit with basic functions, adjustable and fixed output. It is particularly suited for use in series production in mechanical engineering. The wide-range input and international certification allows worldwide implementation. The high MTBF of 500000h stands for high supply reliability. The device can be connected in parallel to increase the capacity and redundancy. The TRIO POWER power supply is perfect for use in machine building. All functions and the space-saving design is tailored to the high requirements in this field. The power supply unit features an extremely robust electrical and mechanical design, ensures the reliable supply of all loads even under harsh ambient conditions.
Search Keywords:
2866488
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

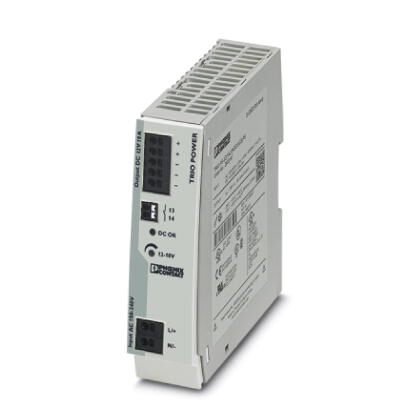

RECOMMENDED REPLACEMENT
2903158
2903158
VIEW PRODUCT
