2866459 by phoenix contact
Image is representational - see mfr. specs
DATA SHEET

2866459

Phoenix Contact

AC/DC DIN Rail Power Supply (PSU) - ITE - 1 Output - 240 W - 24 VDC - 10 A. .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2866459
Alias/AKA:
TRIO-PS/3AC/24DC/10
RoHS:
Yes
HTS:
8504407012
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum AC Input Voltage:
575 V
Input Frequency:
45 to 65 Hz
Number of Outputs:
1
Output Connector Type:
Screw Terminal Block
Minimum DC Input Voltage:
N/A
Output Voltage:
24 V
DC Input Voltage:
N/A
Supplier Temperature Grade:
N/A
Operating Temperature:
-25 to 70 °C
Maximum Input Current:
N/A
Output Type:
Fixed
Dimension:
152.5 x 60 x 130 mm
Mounting:
DIN Rail
Efficiency:
88.5(Typ) %
Packaging:
N/A
AC Input Voltage:
N/A
Maximum Output Current:
10 A
Minimum AC Input Voltage:
320 V
Family:
2866459
Pin Count:
N/A
Supplier Package:
N/A
Minimum Isolation Voltage:
N/A
Type:
Switching
Input Connector Type:
Screw Terminal Block
Maximum DC Input Voltage:
N/A
Style:
DIN Rail
Maximum Output Power:
240 W
Life Cycle:
Discontinued & Replaced
The 2866459 is a 24V/240W 1-output primary switched TRIO Power Supply for DIN-rail mounting, 1-phase input with standard functionality. TRIO Power is particularly suited to standard machine production. The robust metal housing, the high electric strength and the wide temperature range ensure a high level of power supply reliability. Use the third negative terminal block as a grounding terminal block, maximum operational reliability thanks to high MTBF (mean time between failures) of more than 500000 hours, rugged design with metal housing, compensation of voltage drops by means of output voltage that can be adjusted on the front.
Search Keywords:
2866459
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

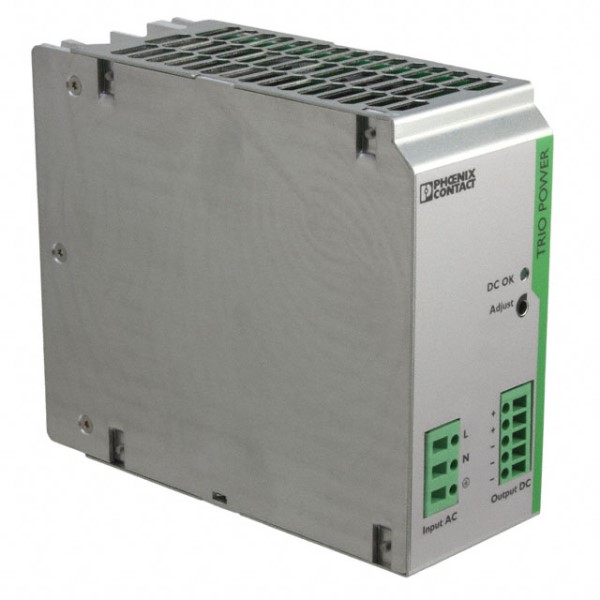

1159042
1159042
VIEW PRODUCT
