2866297

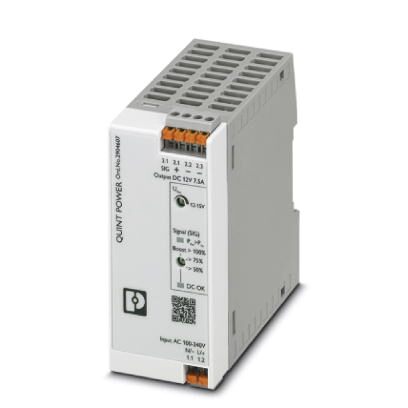

Phoenix ContactAC/DC DIN Rail Power Supply (PSU) - ITE - 1 Output - 96 W - 12 VDC - 8 A. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2866297
RoHS:
Yes
HTS:
8504407007
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Number of Outputs:
3
Type:
Switching
Packaging:
N/A
Efficiency:
88(Min) %
Operating Temperature:
-25 to 70 °C
Maximum AC Input Voltage:
264 V
Style:
DIN Rail
Supplier Temperature Grade:
N/A
DC Input Voltage:
N/A
Maximum Input Current:
N/A
Output Voltage:
12,10,15 V
Minimum DC Input Voltage:
90 V
Minimum AC Input Voltage:
85 V
Input Connector Type:
Screw Terminal Block
Supplier Package:
N/A
Maximum DC Input Voltage:
350 V
Output Connector Type:
Screw Terminal Block
Output Type:
Fixed
Mounting:
DIN Rail
Maximum Output Power:
100 W
Dimension:
107 x 67.5 x 99 mm
Maximum Output Current:
8,6.6 A
Input Frequency:
45 to 65 Hz
Family:
2866297
AC Input Voltage:
N/A
Pin Count:
8
Minimum Isolation Voltage:
3000 VAC
Life Cycle:
Discontinued & Replaced
The 2866297 is a 1-output DIN rail mount primary-switched MINI Power Supply for MCR technology. MINI POWER is the extra narrow power supply unit and can be used globally due to the consistent provision of a wide-range input. Reliable startup of heavy loads is ensured by a power reserve of up to 100% - the POWER BOOST. The high level of operational safety is also ensured in complex global networks. MINI POWER also operates in applications where static voltage dips, transient power supply failures or phase failure are common. Powerful capacitors ensure mains buffering of more than 20ms at full load. In measurement and control technology (MCR), modular electronics housing has become the industry standard. The reliability of a power supply unit determines the availability of individual components in a system and whether complex systems can function safely.
Search Keywords:
2866297
This product is not in stock and cannot be back-ordered
Please Note:
Tariffs may apply for U.S. shipments
Product Guides
Datasheet
