Image is representational - see mfr. specs

2761509

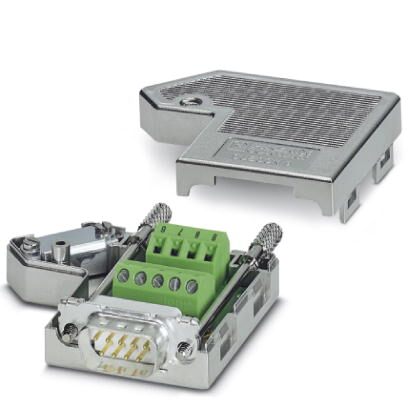

D-SUB connector - 9-pos. - male connector - one cable entry < 35° - universal type for all systems - pin assignment: 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 to screw connection terminal block

RoHS Compliant

Packaging

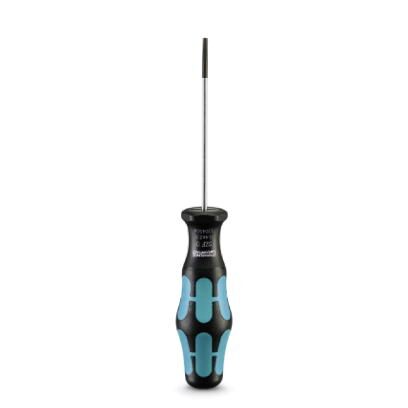

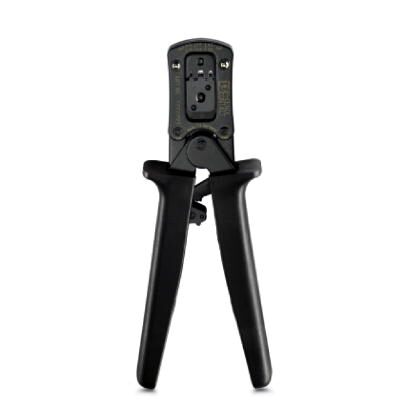

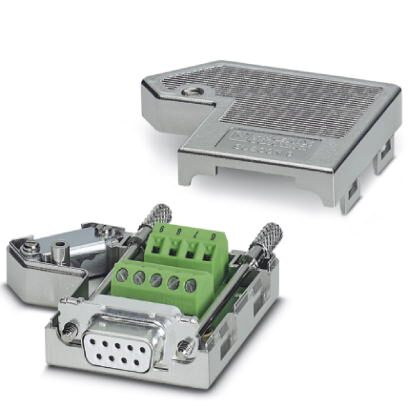

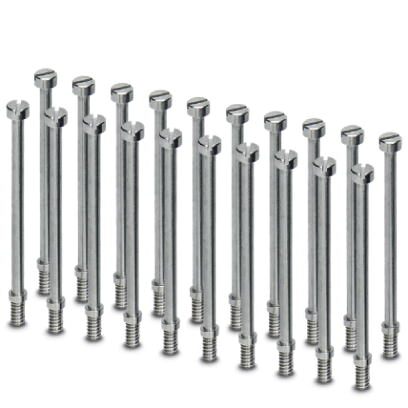

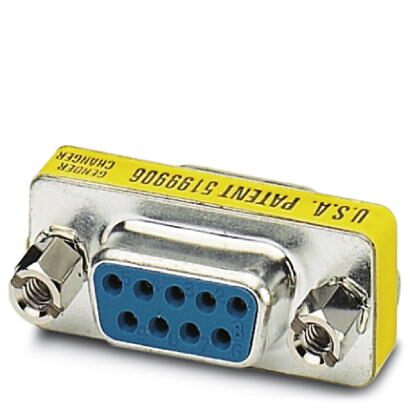

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

2761509

Alias/AKA:

SUBCON 9/M-SH

RoHS:

Yes

HTS:

8536694030

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Type:

D-Subminiature Module

Body Orientation:

Straight

Gender:

Pitch:

N/A

Number of Contacts:

Operating Temperature:

-20 to 75 °C

The 2761509 is a 9-position male D-sub Bus PCB Connector with screw connection and <35° one cable entry. This 2761509 connector supports RS-232, RS-422, RS-485 signals. The housing is made of metal-plated ABS.
