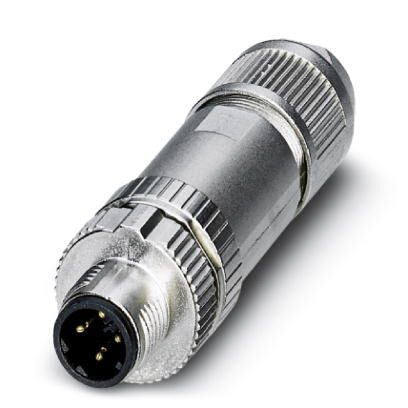

1424682 by phoenix contact
Image is representational - see mfr. specs
DATA SHEET

1424682

Phoenix Contact

Connector - PROFINET CAT5 (100 Mbps) - 4-position - shielded - Plug straight M12 - D-coded - Push-in connection - knurl material: Zinc die-cast - nickel-plated - external cable diameter 4 mm ... 8 mm .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1424682
Alias/AKA:
SACC-M12MSD-4PL SH PN
RoHS:
Yes
HTS:
8536694020
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Family:
1424682
Packaging:
N/A
Termination Method:
Spring Cage
Ingress Protection:
IP65/IP67
Type:
M12 Circular
Shell Material/Plating:
Zinc Die Cast/Nickel
Contact Gender:
Pin
Contacts Classification:
4Signal
Dimension:
61 x 19 mm
Body Orientation:
Straight
Number of Terminals:
4
Contact Plating:
Gold over Nickel
Number of Ports:
1
Mounting:
Cable Mount
Operating Temperature:
-40 to 85 °C
Gender:
PL
Maximum Voltage Rating:
60,48 VDC|VAC
Number of Contacts:
4
Contact Material:
Bronze
Maximum Current Rating:
4 A
This Phoenix Contact part 1424682 is a Connector designed for PROFINET CAT5 applications with a maximum speed of 100 Mbps. It features 4 positions and is shielded for increased data integrity. The Plug is straight M12 with D-coded pins and utilizes a Push-in connection method for easy installation. The knurl material is Zinc die-cast with a nickel-plated finish. This Connector is suitable for external cable diameters ranging from 4 mm to 8 mm, making it a versatile and reliable solution for your networking needs.
Search Keywords:
1424682
IN STOCK: 0
Factory Lead-Time
4 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$24.98
$24.98
5 +
$23.73
$118.65
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
