DMNF1-63FIB-3K by panduit
Image is representational - see mfr. specs
DATA SHEET

DMNF1-63FIB-3K

Panduit

Quick Disconnect Terminal 15-20AWG F 21.3mm 8.9mm Tin .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Panduit
Part No:
DMNF1-63FIB-3K
RoHS:
Yes
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3000
Packaging:
N/A
Operating Temperature:
105(Max) °C
Gender:
F
Stud Size:
N/A
Wire Size:
15-20 AWG
Color:
Red
Type:
Quick Disconnect Terminal
Dimension:
21.3 x 8.9 mm
Family:
DMNF
Tab Size:
5.04 mm²
Life Cycle:
Discontinued & Replaced

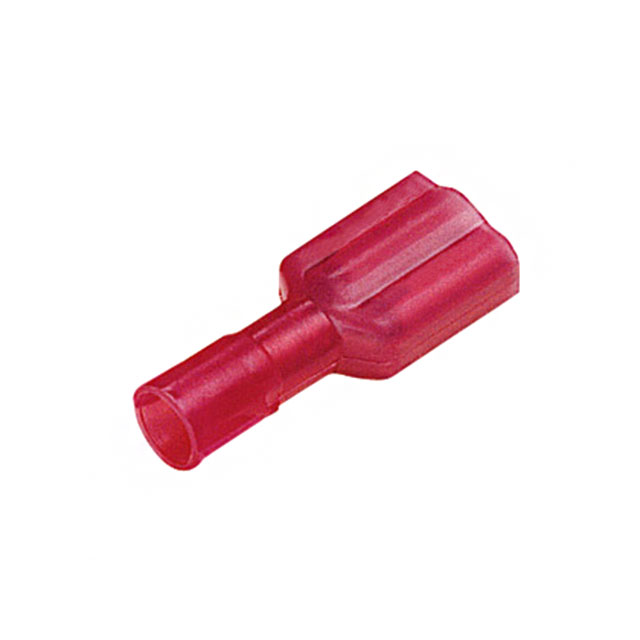

The Panduit Canada part DNF18-250FIB-3K is a crimp female quick connector in a vibrant red color. This connector is fully insulated, ensuring safe and reliable connections. It features a tab width of 6.35mm and a tab thickness of 0.81mm, making it compatible with various wire sizes. The length of the connector measures 21.34mm, providing ample space for secure crimping. Designed for use with 18/22 AWG wires, this connector is suitable for a wide range of applications. The contact material is brass, known for its excellent conductivity and durability. Additionally, the contact finish is tin, which helps prevent corrosion and enhance electrical performance. Whether you need to connect wires in electrical, automotive, or industrial applications, the Panduit Canada DNF18-250FIB-3K crimp female quick connector is an excellent choice that ensures efficient and long-lasting connections.
Product Highlights:
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
  • Coupler, male, and female parts sold separately
Search Keywords:
DMNF163FIB3K
  This product is not in stock and cannot be back-ordered
  Different packaging options available.  See Alternatives
Minimum Order Quantity:
70
RECOMMENDED REPLACEMENT
DNF18-250FIB-3K
DNF18-250FIB-3K
VIEW PRODUCT
