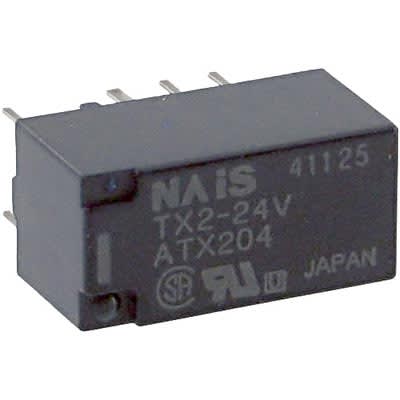

TX2-24V by panasonic electronic components
Image is representational - see mfr. specs
DATA SHEET

TX2-24V

Panasonic Electronic Components

Signal Relay - 24 VDC - DPDT - 2 A - TX Series - Through Hole - Non Latching. .. see full description

RoHS Compliant
Tube Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
TX2-24V
RoHS:
Yes
HTS:
8536490050
COO:
JP
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Package Type:
Tube
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Through Hole
Operating Temperature:
-40 to 85 °C
Dimension:
15 x 8.2 x 7.4 mm
Termination Style:
PC Pin
Coil Current:
5.8 mA
Contact Form:
2 Form C
The TX2-24V is a Signal Relay with DC coil. This TX-series signal relay has 2CO (DPDT) Au-clad Ag alloy contacts. Best seller with broad line-up and AC 2000V breakdown voltage. Standard PC board terminal. The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2000V between contact and coil and 1000V between open contacts.
Search Keywords:
TX224V
IN STOCK: 0
Minimum Order Quantity:
40
Multiple:
40
Factory Lead-Time
18 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
40
$2.09
$83.60
80
$1.10
$88.00
280
$1.06
$296.80
520 +
$1.04
$540.80
Suppliers Standard Package
