3110KL-05W-B50P00 by nmb technologies corporation
Image is representational - see mfr. specs
DATA SHEET

3110KL-05W-B50P00

NMB Technologies Corporation

Fan Tubeaxial - 12VDC - Square - 80mm L x 80mm H - Ball - 2 Wire Leads .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
NMB Technologies Corporation
Part No:
3110KL-05W-B50P00
RoHS:
Yes
HTS:
8414596590
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Life Cycle:
Discontinued & Replaced
Voltage - Rated 12VDC Size / Dimension Square - 80mm L x 80mm H Width 20.00mm Air Flow 34.6 CFM (0.969m³/min) Static Pressure 0.134 in H2O (33.5 Pa) Bearing Type Ball Fan Type Tubeaxial Noise 32.5 dB Power (Watts) 1.68W RPM 2950 RPM Termination 2 Wire Leads Operating Temperature 14 ~ 158°F (-10 ~ 70°C) Approvals CE, CSA, UL, VDE Weight 0.187 lb (84.82g) Current Rating (Amps) 0.140A Voltage Range 6 ~ 13.8VDC Material - Frame Plastic Material - Blade Plastic
Search Keywords:
3110KL05WB50P00
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

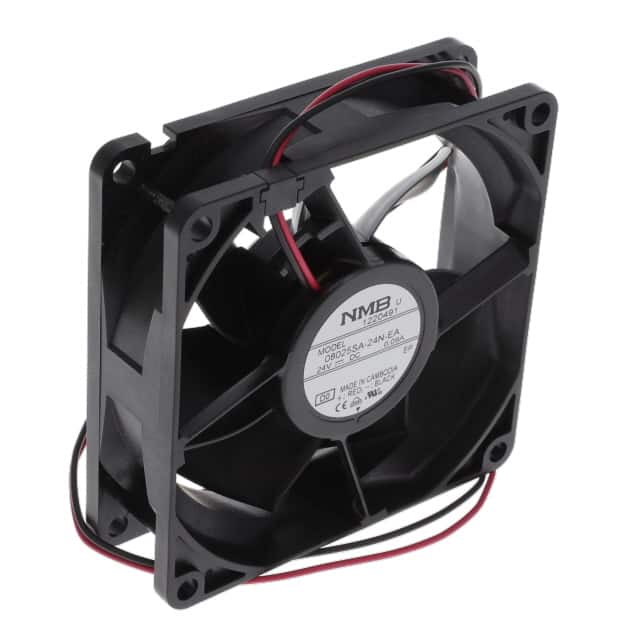

08025SA-24N-EA-D0
08025SA-24N-EA-D0
VIEW PRODUCT
