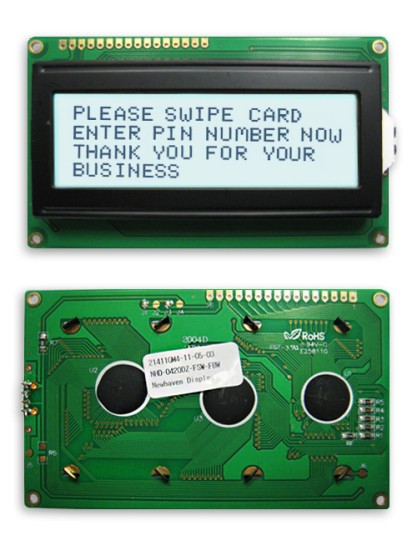

NHD-0420DZ-FSW-FBW by newhaven display
Image is representational - see mfr. specs
DATA SHEET

NHD-0420DZ-FSW-FBW

Newhaven Display

LCD Character Display - 4 x 20 Character - FSTN (+) - White Backlight - 98.0 x 60.0 mm .. see full description

RoHS Compliant
Bulk Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0420DZ-FSW-FBW
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Display Format:
4 x 20 Characters
Display Type:
FSTN (+)
Display Mode:
Transflective
Text Color:
Black
Background Color:
White
Backlight:
LED - White
Active Area:
70.4 x 20.8 mm
Character Size:
4.75 x 2.95 mm
Dimension:
98 x 60 x 13.6 mm
Interface:
8-Bit Parallel
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C
The NHD-0420DZ-FSW-FBW is a 4 x 20 Character LCD Character Display. It features a FSTN (+) Transflective Display with a White Backlight. Character size is 4.75 x 2.95 mm. It uses an 8-Bit Parallel Interface. Voltage requirement is 5V. Controller required is the SPLC780D or ST7066U
Search Keywords:
NHD0420DZFSWFBW
IN STOCK: 0
Factory Lead-Time
15 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$26.64
$26.64
10
$23.23
$232.30
25
$22.87
$571.75
50
$21.57
$1,078.50
100
$20.53
$2,053.00
250
$19.48
$4,870.00
500 +
$18.71
$9,355.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
