NL4MD-H by neutrik
Image is representational - see mfr. specs
DATA SHEET

NL4MD-H

Neutrik

speakON Chassis Connectors - 4 pole chassis connector - grey D-size flange - self tapping screw holes (A-screw) - horizontal PCB mount The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. T .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NL4MD-H
RoHS:
Yes
HTS:
8536694040
COO:
LI
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Loudspeaker Connector
Gender:
M
Body Orientation:
Right Angle
Mounting:
Through Hole
Housing Material:
Polyamide
Number of Contacts:
4
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount <br /><br />The state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.
Product Highlights:
  • Standard current rating 30 Amp
  • High current version up to 50 Amp audio current
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
Search Keywords:
NL4MDH
  This product is not in stock and cannot be back-ordered
Minimum Order Quantity:
5
Please Note: Tariffs may apply for U.S. shipments

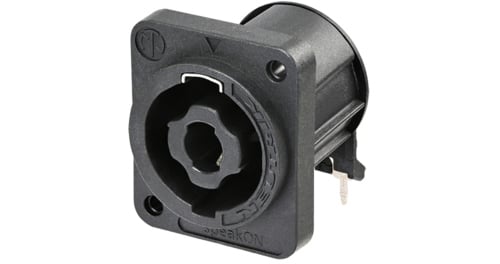

RECOMMENDED REPLACEMENT
NL4MDXX-H-3
NL4MDXX-H-3
VIEW PRODUCT
