NFM-15-3.3 by mean well
Image is representational - see mfr. specs
DATA SHEET

NFM-15-3.3

Mean Well

AC/DC Power Supply - 1 Output - 3.3V@3.5A - 11.55W - Medical

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
NFM-15-3.3
RoHS:
Yes
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum DC Input Voltage:
120 V
Maximum DC Input Voltage:
370 V
Maximum Output Power:
11.55 W
Output Voltage:
3.3 V
Minimum AC Input Voltage:
85 V
Maximum AC Input Voltage:
264 V
IP Rating:
None
Number of Outputs:
1
Family:
NFM-15
Type:
Switching,Regulated
Operating Temperature:
-20 to 70 °C
DC Input Voltage:
120 to 370 V
OUT2 Range VDC:
Not App
Output Voltage Range:
3-3.63 VDC
Warranty:
3 Years
Input Frequency:
47 to 63 Hz
Power Factor Correction:
None
Input Connector Type:
PC Pins - Thru-hole
Style:
Open Frame
OUT4 Amps:
Not App
OUT6 Amps:
Not App
Product Weight:
65 g
OUT5 Amps:
Not App
OUT2 VDC:
Not App
Input/Output Type:
AC/DC
OUT2 Amps:
Not App
OUT1 Amps:
3.5
Termination Style:
PC Pins
Dimension:
69.85 x 48 x 17.5+4.5 mm
Supplier Temperature Grade:
N/A
Pin Count:
4
Output Connector Type:
PC Pins - Thru-hole
Minimum Isolation Voltage:
4000 VAC
OUT6 VDC:
Not App
OUT4 VDC:
Not App
OUT1 VDC:
3.3
OUT3 Amps:
Not App
Mounting:
Thru-hole
OUT3 VDC:
Not App
Efficiency:
73(Typ) %
OUT5 VDC:
Not App
Output Type:
Fixed
OUT1 Range VDC:
3-3.63
Supplier Package:
N/A
Maximum Output Current:
3.5 A
AC Input Voltage:
85 to 264 V
Maximum Input Current:
0.35(Typ) A
Packaging:
N/A
Life Cycle:
Discontinued & Replaced
AC/DC Power Supply - 1 Output - 3.3V@3.5A - 11.55W - Medical
Search Keywords:
NFM1533
  This product is not in stock and cannot be back-ordered
Minimum Order Quantity:
2
Please Note: Tariffs may apply for U.S. shipments

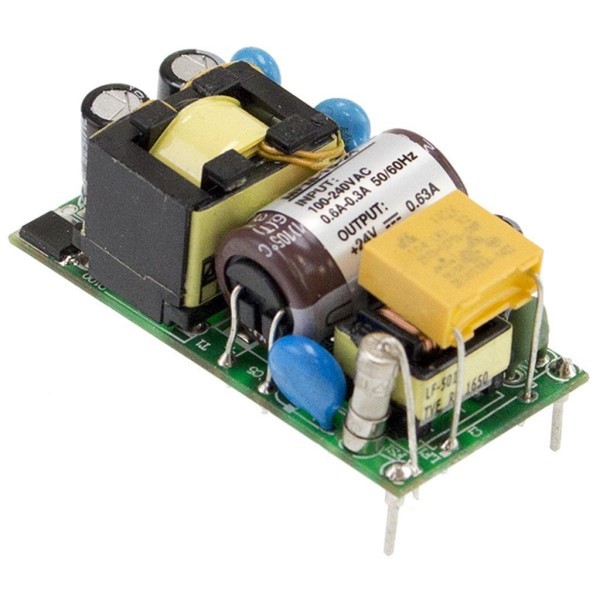

RECOMMENDED REPLACEMENT
MFM-15-3.3
MFM-15-3.3
