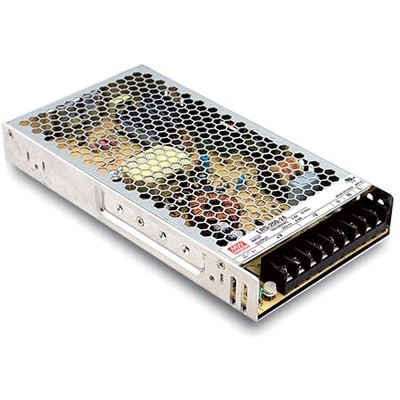

LRS-200-12 by mean well
Image is representational - see mfr. specs
DATA SHEET

LRS-200-12

Mean Well

AC/DC Power Supply - 1 Output - 12V@17A - 204W.

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
LRS-200-12
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Packaging:
N/A
Number of Outputs:
1
Maximum DC Input Voltage:
370 V
Supplier Package:
N/A
Minimum Isolation Voltage:
3000 VAC
Type:
Switching,Regulated
Input/Output Type:
AC/DC
Operating Temperature:
-30 to 70 °C
Product Weight:
660 g
OUT2 VDC:
Not App
Input Frequency:
47 to 63 Hz
Family:
LRS-200
Dimension:
215 x 115 x 30 mm
AC Input Voltage:
90 to 132,180 to 264 V
Efficiency:
87.5(Typ) %
OUT1 VDC:
12
OUT6 Amps:
Not App
Pin Count:
9
DC Input Voltage:
240 to 370 V
OUT5 Amps:
Not App
OUT2 Range VDC:
Not App
OUT3 Amps:
Not App
Output Voltage Range:
10.2-13.8 VDC
Termination Style:
Terminal Block
Warranty:
3 Years
Mounting:
Screw
Style:
Enclosed
IP Rating:
None
Maximum AC Input Voltage:
264 V
OUT4 VDC:
Not App
Supplier Temperature Grade:
N/A
OUT3 VDC:
Not App
Output Type:
Fixed
Minimum DC Input Voltage:
240 V
Minimum AC Input Voltage:
90 V
Maximum Input Current:
4(Typ) A
Maximum Output Current:
17 A
Power Factor Correction:
None
Output Connector Type:
Screw Terminal Block
Maximum Output Power:
204 W
Output Voltage:
12 V
OUT5 VDC:
Not App
OUT1 Amps:
17
Input Connector Type:
Screw Terminal Block
OUT2 Amps:
Not App
OUT4 Amps:
Not App
OUT1 Range VDC:
10.2-13.8
OUT6 VDC:
Not App
The LRS-200-12 is an AC to DC power supply from Mean-Well USA, Inc.. It has a voltage of 12 V and maximum output power of 204 W. This part's single output can handle a current up to 17 A. This part has a temperature range of -30 °C to 70 °C.
Search Keywords:
LRS20012
IN STOCK: 0
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$26.00
$26.00
5
$24.80
$124.00
10
$23.70
$237.00
20 +
$23.00
$460.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
