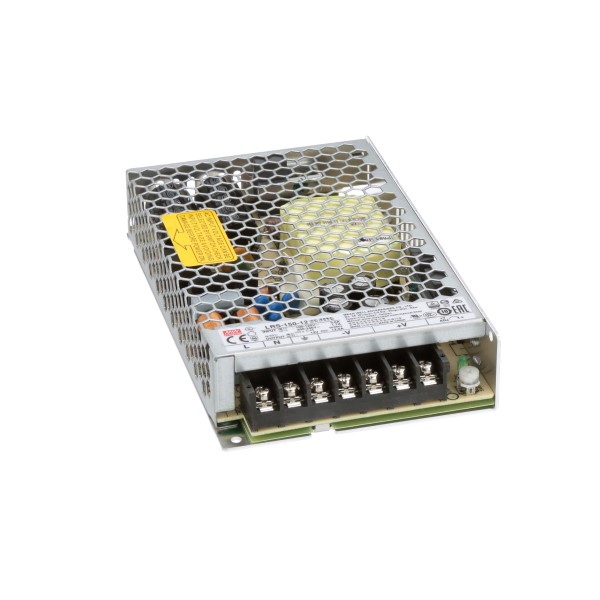

LRS-150-12 by mean well
Image is representational - see mfr. specs
DATA SHEET

LRS-150-12

Mean Well

AC/DC Power Supply - 1 Output - 12V@12.5A - 150W. .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
LRS-150-12
RoHS:
Yes
HTS:
8504409530
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
DC Input Voltage:
240 to 370 V
IP Rating:
None
Maximum Input Current:
2.8(Typ) A
Maximum DC Input Voltage:
370 V
Number of Outputs:
1
Product Weight:
480 g
OUT1 Amps:
12.5
Dimension:
159 x 97 x 30 mm
Termination Style:
Terminal Block
Power Factor Correction:
None
Mounting:
Screw
Supplier Temperature Grade:
N/A
Minimum AC Input Voltage:
85 V
OUT5 VDC:
Not App
Supplier Package:
N/A
Pin Count:
7
OUT6 Amps:
Not App
Output Voltage Range:
10.2-13.8 VDC
OUT1 VDC:
12
Input Connector Type:
Screw Terminal Block
OUT1 Range VDC:
10.2-13.8
OUT3 VDC:
Not App
Maximum AC Input Voltage:
264 V
OUT6 VDC:
Not App
OUT4 VDC:
Not App
Type:
Switching,Regulated
OUT2 Range VDC:
Not App
Output Connector Type:
Screw Terminal Block
Minimum Isolation Voltage:
3750 VAC
OUT4 Amps:
Not App
OUT2 Amps:
Not App
Efficiency:
87.5(Typ) %
OUT2 VDC:
Not App
Operating Temperature:
-30 to 70 °C
Input/Output Type:
AC/DC
Output Type:
Fixed
OUT5 Amps:
Not App
Minimum DC Input Voltage:
240 V
Output Voltage:
12 V
Maximum Output Power:
150 W
Family:
LRS-150
Warranty:
3 Years
Style:
Enclosed
Packaging:
N/A
OUT3 Amps:
Not App
AC Input Voltage:
85 to 132,170 to 264 V
Input Frequency:
47 to 63 Hz
Maximum Output Current:
12.5 A
The LRS-150-12 is an AC to DC power supply from Mean-Well USA, Inc. It will convert alternating currents into useful direct currents to operate. It has a voltage of 12 V and maximum output power of 150 W. This part's single output can handle a current up to 12.5 A. This part has a temperature range of -30 °C to 70 °C.
Search Keywords:
LRS15012
IN STOCK: 0
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$19.80
$19.80
5
$18.80
$94.00
10
$18.00
$180.00
20 +
$17.50
$350.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
