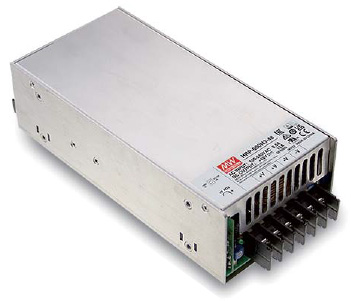

HRP-600N-12
Mean Well600W 65W AC-DC enclosed power supply - Output 12VDC at 53A - 1U low profile - free air convection - 200% peak load in 5 seconds
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
HRP-600N-12
RoHS:
Yes
HTS:
8504409540
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Input Frequency:
47 to 63 Hz
Dimension:
218 x 105 x 61.5104mmmm
Input Connector Type:
Screw Terminal Block107
Style:
Enclosed129
Efficiency:
88(Typ) %
Pin_Count:
11
Number of Outputs:
1120
Operating Temperature:
-40 to 70 °C
AC Input Voltage:
110,230 V
Maximum Output Power:
636 W
Minimum Isolation Voltage:
3000 VAC
3000Vac
Supplier Temperature Grade:
N/A
Maximum DC Input Voltage:
370 V
Supplier_Package:
N/A
DC Input Voltage:
N/A
Minimum AC Input Voltage:
85 V
Maximum AC Input Voltage:
264 V
Output Connector Type:
Screw Terminal Block121
Output Type:
Fixed122
Family:
HRP-600N-12
Type:
Regulated132
Packaging:
Carton
Minimum DC Input Voltage:
120 V
Maximum Input Current:
7.6(Typ) A
Mounting:
Chassis
Maximum Output Current:
53 A
Output Voltage:
12 V
Life Cycle:
Discontinued & Replaced
600W 65W AC-DC enclosed power supply - Output 12VDC at 53A - 1U low profile - free air convection - 200% peak load in 5 seconds
Search Keywords:
HRP600N12
This product is not in stock and cannot be back-ordered
Product Guides
Datasheet
