GS220A24-R7B by mean well
Image is representational - see mfr. specs
DATA SHEET

GS220A24-R7B

Mean Well

AC/DC Adapter - Desktop - 221 Watts: 24V @ 9.2A - IEC 320-C14 Inlet - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
GS220A24-R7B
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimension:
210 x 85 x 46 mm
Input Voltage:
90 to 264Vac | 127 to 370Vdc
Output Connector Diameters:
Not App
Maximum Output Current:
9.2 A
Overload Protection:
Yes
Adapter Color:
Black
Output Connector Type:
DIN - Cyl - 4-Pin
Family:
GS220
Output Voltage:
24 VDC
CoC Tier:
No
Supplier Package:
N/A
Maximum Output Power:
221 W
Package Type:
Desktop
Output Cord Length:
1.0m (39.4in)
Safety Class:
None
Minimum DC Input Voltage:
127
Minimum AC Input Voltage:
90
DC Input Voltage:
127 to 370
Minimum Isolation Voltage:
3000 VAC
AC Input Voltage:
90 to 264
PFC:
>0.91(Min)
Maximum Input Current:
Not Spec'd
Power Indicator:
Yes
Mounting Style:
External
Ripple & Noise:
180 mV
Power Rating:
221 W
Output Connector Angle:
Straight
Power:
221 W
Minimum Input Voltage:
90Vac | 127Vdc
Pin Count:
N/A
Operating Temperature:
-30 to 60 °C
Protection:
Overload,Over Temperature,Over Voltage
Type:
Regulated-Switching
AC Input Current - Maximum:
0.58A
Mounting:
External
Maximum Input Voltage:
264Vac | 370Vdc
Line Regulation:
1.00 %
Thermal Protection:
Yes
Dimensions L x W x H(in):
8.27 x 3.35 x 1.82 in
Safety Approvals:
BSMI, CB, CCC, CE, cUL, GS, PSE, TUV, UL
Load Regulation:
3.00 %
Output Connector Polarity:
Not App
Maximum AC Input Voltage:
264
Efficiency:
93.5(Typ) %
Number of Outputs:
1
Dimensions LxWxH:
8.27 x 3.35 x 1.82 in
Short Circuit Protection:
No
MOPP:
Not App
Input Frequency:
47 to 63 Hz
Grade:
Commercial
Maximum DC Input Voltage:
370
Dimensions L x W x H:
210.0 x 85.0 x 46.0 mm
Output Current:
9.2 A
Minimum Load (Amps):
0
Packaging:
N/A
Typical Hold-Up Time:
20 ms
DOE Efficiency Level:
V
Typical Inrush Current:
120A(Max) at 230Vac
AC Input Current - Typical:
Not Spec'd
Input/Output Type:
AC/DC
Over Voltage Protection:
Yes
Input Connector Type:
IEC 320-C14
Style:
Desktop Adapter
Output Type:
Fixed
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 221 Watts: 24V @ 9.2A - IEC 320-C14 Inlet - Lvl V
Search Keywords:
GS220A24R7B
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

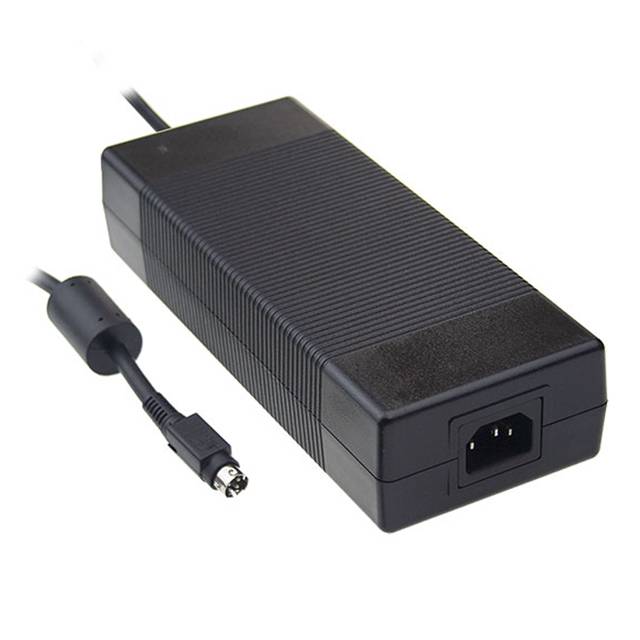

RECOMMENDED REPLACEMENT
GST220A24-R7B
GST220A24-R7B
VIEW PRODUCT
