GS160A24-R7B by mean well
Image is representational - see mfr. specs
DATA SHEET

GS160A24-R7B

Mean Well

AC/DC Adapter - Desktop - 160 Watts: 24V @ 6.67A - IEC 320-C14 Inlet - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
GS160A24-R7B
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Input Voltage:
90Vac | 120Vdc
Number of Outputs:
1
Maximum AC Input Voltage:
264
Package Type:
Desktop
Output Connector Diameters:
Not App
Power Indicator:
Yes
Output Connector Type:
DIN - Cyl - 5-Pin
Family:
GS160
Style:
Desktop Adapter
Safety Class:
I
Minimum DC Input Voltage:
120
Mounting:
External
Line Regulation:
1.00 %
Protection:
Overload,Over Voltage,Over Temperature
Output Cord Length:
1.2m (47.3in)
PFC:
>0.95(Min)
Efficiency:
92.5(Typ) %
Operating Temperature:
-30 to 70 °C
Dimensions LxWxH:
6.89 x 2.84 x 1.38 in
Minimum Isolation Voltage:
3000 VAC
Overload Protection:
Yes
Adapter Color:
Black
Maximum DC Input Voltage:
370
Output Type:
Fixed
Input Voltage:
85 to 264Vac | 120 to 370Vdc
Over Voltage Protection:
Yes
Maximum Output Current:
6.67 A
AC Input Current - Typical:
1.85/1.0A at 115/230Vac
Supplier Package:
N/A
Safety Approvals:
CB, CE, cUL, GS, PSE, TUV, UL
Output Voltage:
24 VDC
Grade:
Commercial
Output Connector Polarity:
Not App
Mounting Style:
External
Output Current:
6.67 A
Power:
160 W
Input Connector Type:
IEC 320-C14
AC Input Current - Maximum:
Not Spec'd
Maximum Output Power:
160 W
Input Frequency:
47 to 63 Hz
Power Rating:
160 W
Dimensions L x W x H(in):
6.89 x 2.84 x 1.38 in
Maximum Input Current:
1.85/1.0A at 115/230Vac
Minimum Load (Amps):
0
CoC Tier:
No
DOE Efficiency Level:
V
Pin Count:
N/A
Output Connector Angle:
Straight
DC Input Voltage:
120 to 370
Maximum Input Voltage:
264Vac | 370Vdc
Dimensions L x W x H:
175.0 x 72.0 x 35.0 mm
Thermal Protection:
Yes
Minimum AC Input Voltage:
85
Dimension:
175 x 72 x 35 mm
Input/Output Type:
AC/DC
AC Input Voltage:
85 to 264
Typical Inrush Current:
120A(Max) at 230Vac
MOPP:
Not App
Packaging:
N/A
Typical Hold-Up Time:
20 ms
Load Regulation:
3.00 %
Type:
Regulated-Switching
Ripple & Noise:
180 mV
Short Circuit Protection:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 160 Watts: 24V @ 6.67A - IEC 320-C14 Inlet - Lvl V
Search Keywords:
GS160A24R7B
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

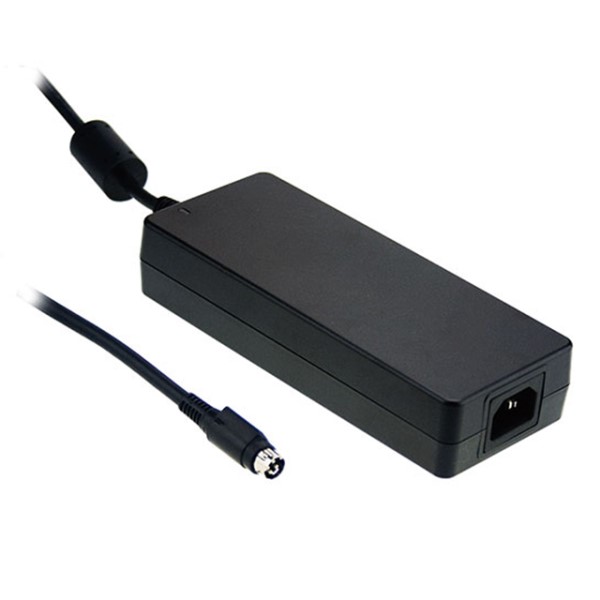

RECOMMENDED REPLACEMENT
GST160A24-R7B
GST160A24-R7B
