ES25C12-P1J by mean well
DATA SHEET

ES25C12-P1J

Mean Well

AC/DC Adapter - Desktop - 25 Watts: 15V @ 2.08A - IEC C320-C6 Inlet

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
ES25C12-P1J
RoHS:
Yes
HTS:
8504409510
COO:
TW
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Frequency:
47 to 63 Hz
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Minimum Isolation Voltage:
3000Vac
Typical Hold-Up Time:
16 ms
Load Regulation:
3.00 %
Dimensions L x W x H:
79.0 x 54.0 x 33.0 mm
AC Input Current - Maximum:
0.58A
Output Cord Length:
1.83m (72.1in)
Dimension:
79 x 54 x 33 mm
AC Input Voltage:
90 to 264
Input/Output Type:
AC/DC
Type:
Regulated-Switching
Output Connector Polarity:
Center Positive
Maximum AC Input Voltage:
264
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
Number of Outputs:
1
Output Voltage:
12 VDC
Minimum DC Input Voltage:
135
Minimum Input Voltage:
90Vac | 135Vdc
Typical Inrush Current:
40A(Max) at 230Vac
DOE Efficiency Level:
No
Minimum Load (Amps):
0.1
CoC Tier:
No
Ripple & Noise:
80 mV
Short Circuit Protection:
Yes
Dimensions L x W x H(in):
3.11 x 2.13 x 1.30 in
PFC:
No
Output Current:
2.08 A
Output Type:
Fixed
Input Voltage:
90 to 264Vac | 135 to 370Vdc
Maximum DC Input Voltage:
370
Output Connector Type:
Barrel - Female
Input Connector Type:
IEC 320-C6
Maximum Input Voltage:
264Vac | 370Vdc
Minimum AC Input Voltage:
90
Maximum Output Power:
25 W
Package Type:
Wall Plug
Output Connector Angle:
Straight
Over Voltage Protection:
Yes
Overload Protection:
Yes
Power Indicator:
Yes
Operating Temperature:
0 to 50 °C
Maximum Output Current:
0.1 A
Safety Approvals:
BSMI, CB, CE, GS, TUV, cULus
Grade:
Commercial
Efficiency:
76(Typ) %
Mounting:
External
Dimensions LxWxH:
3.11 x 2.13 x 1.3 in
Thermal Protection:
No
Family:
ES25C
Line Regulation:
1.00 %
Style:
Desktop Adapter
Power:
25 W
Adapter Color:
Black
DC Input Voltage:
135 to 370
Safety Class:
I
Maximum Input Current:
Not Spec'd
Power Rating:
25 W
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 25 Watts: 15V @ 2.08A - IEC C320-C6 Inlet
Search Keywords:
ES25C12P1J
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

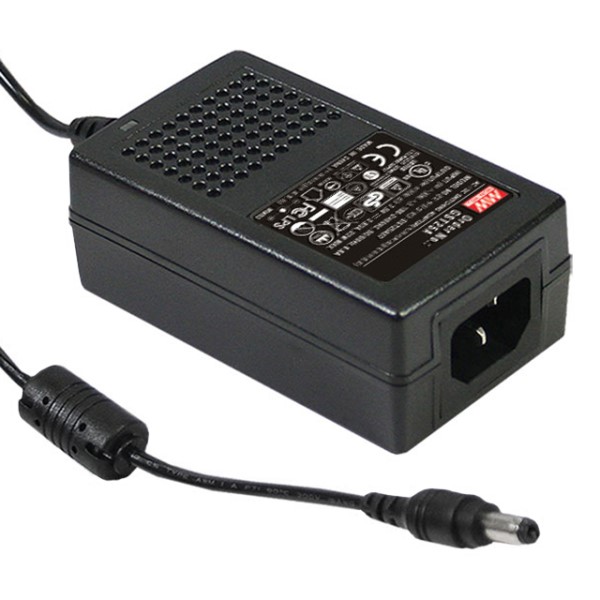

RECOMMENDED REPLACEMENT
GST25A12-P1J
GST25A12-P1J
