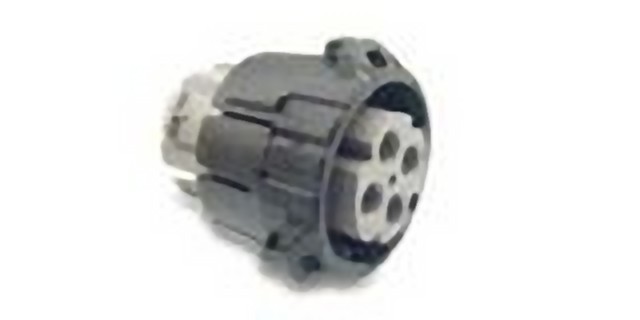

Circular DIN Connector - 4 Contact - Female - Cable Mount - Crimp Terminal - Plug

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

ITT CANNON

Part No:

121583-0003

Alias/AKA:

APD-4BS-K2

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99
