MS24525-22 by honeywell
Image is representational - see mfr. specs
DATA SHEET

MS24525-22

Honeywell

Switch Toggle OFF ON 4PST Round Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
MS24525-22
RoHS:
Yes
HTS:
85365080
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Pole Throw Configuration:
4P1T (4PST)
Switch Configuration:
OFF None ON
Contact Rating @ Voltage:
745.7 A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw

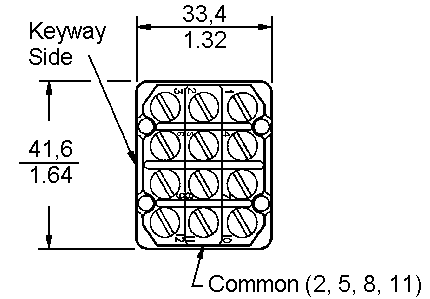

Dimension:
33.5mm x 41.6mm x 63.47mm
Operating Temperature:
-65 to 71 °C
The 4TL1-2 from HONEYWELL is panel mount four pole single throw (4PST) toggle switch with On-Off switch function and screw terminal termination. This environment sealed switch has non-illuminated 17.27mm long standard round actuator. The 4TL1-2 has 15A current rating and 125VAC voltage rating. Operating temperature range is from -65°C to 71°C.
Product Highlights:
  • Qualified to MIL-S-3950
  • Environment-proof sealing
  • 1,2, and 4 pole circuitry
  • Standard and pull-to-unlock levers
  • 2 and 3 position, maintained and momentary toggle action
  • Temperature range: -85 F to +160 F
  • Completely sealed switching chamber
  • Step-design case provides added space between terminals to help prevent shorting
  • UL recognized, CSA certified
  • CE approved
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>
Search Keywords:
MS2452522
IN STOCK: 0
Factory Lead-Time
6 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$78.53
$78.53
5
$75.85
$379.25
10
$72.02
$720.20
15
$71.66
$1,074.90
25
$69.57
$1,739.25
50 +
$63.41
$3,170.50
