DATA SHEET

2TL1-7

Honeywell

TL Series Two Pole Toggle Switch - (On)-Off-(On) operation - 10A - Screw terminals - Mil PN: S24524-27 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
2TL1-7
Alias/AKA:
MS24524-27
RoHS:
Yes
HTS:
8536509065
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Box
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
(On) Off (On)
Contact Rating @ Voltage:
372.85 A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw

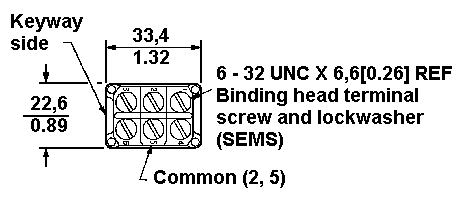

Dimension:
33.5mm x 22.6mm x 63.47mm
Operating Temperature:
-65 to 71 °C
The Honeywell TL Series Military grade toggle switches with long operating life.Qualified to MIL-DTL-3950, Temp operating: -65 to 71°C, Contacts: Silver alloy or gold plated, Amp Rating: Up to 20A, Non-Illuminated
Product Highlights:
  • Environment-proof sealing
  • Completely sealed switching chamber
  • 1, 2, and 4 pole circuitry
  • Standard and poll-to-unlock levers
  • Step-design case provides added space between terminals to help prevent shorting
  • 2 and 3 position, maintained and momentary toggle action
  • Temperature range: -85 °F to +160 °F
  • Qualified to MIL-DTL-3950
  • ol recognized, CSA certified
  • CE approved
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>
Search Keywords:
2TL17
IN STOCK: 0
Factory Lead-Time
15 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$42.03
$42.03
5
$34.44
$172.20
20
$32.14
$642.80
40
$30.64
$1,225.60
60
$29.93
$1,795.80
100
$29.11
$2,911.00
260 +
$28.97
$7,532.20
