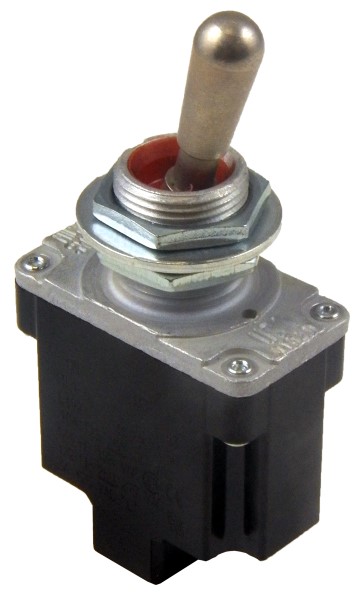

1TL1-1 by honeywell
Image is representational - see mfr. specs
DATA SHEET

1TL1-1

Honeywell

MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw (SPDT) 3 Position (On - Off - On), Screw Terminals, Standard Lever, Military Part Number MS24523-21 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1TL1-1
Alias/AKA:
MS24523-21
RoHS:
Yes
HTS:
8536509065
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
745.7@(CSA/UL) A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight

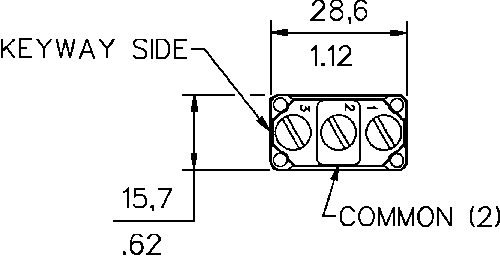

Terminal Type:
Screw
Dimension:
28.4mm x 15.7mm x 63.47mm
Operating Temperature:
-65 to 71 °C
The HONEYWELL part 1TL1-1 is a highly reliable MICRO SWITCHâ„¢ toggle switch designed for various applications. It is part of the TL series and features a single pole double throw (SPDT) configuration with three positions: On - Off - On. This toggle switch is equipped with screw terminals for easy and secure wiring connections. It comes with a standard lever and meets military specifications under the part number MS24523-21. With its excellent quality and durability, the HONEYWELL part 1TL1-1 is a top choice for industrial and military applications.
Product Highlights:
  • Qualified to MIL-S-3950
  • Environment-proof sealing
  • 1,2, and 4 pole circuitry
  • Standard and pull-to-unlock levers
  • 2 and 3 position, maintained and momentary toggle action
  • Temperature range: -85°F to +160°F
  • Completely sealed switching chamber
  • Step-design case provides added space between terminals to help prevent shorting
  • UL recognized, CSA certified
  • CE approved
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>
Search Keywords:
1TL11
IN STOCK: 0
Factory Lead-Time
5 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$34.05
$34.05
5
$26.77
$133.85
10
$25.30
$253.00
25
$24.68
$617.00
50
$23.25
$1,162.50
100
$22.26
$2,226.00
300 +
$21.06
$6,318.00
