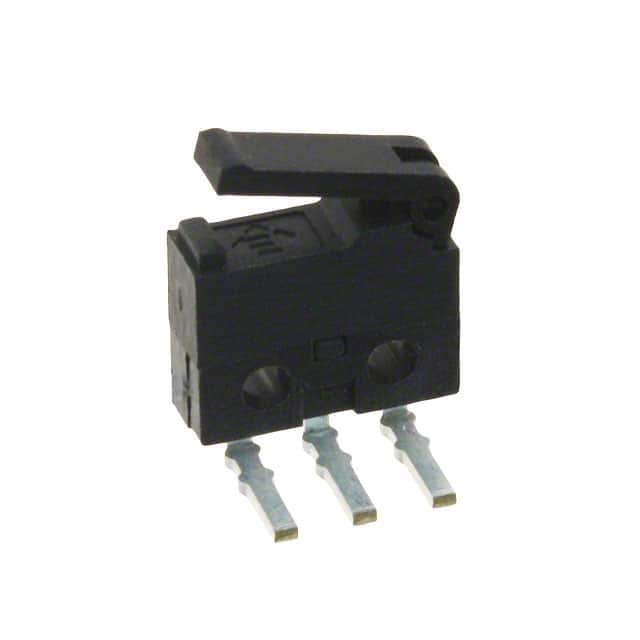

TS0101F020V4 by e-switch
Image is representational - see mfr. specs
DATA SHEET

TS0101F020V4

E-Switch

Sub-Miniature Snap Action Switch - SPDT - 300mA - 6VDC - Straight Lever Actuator - 20gf Operating Force - PC Pin Left-Angle Long - Through Hole.

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TS0101F020V4
RoHS:
Yes
HTS:
8536509040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2000
Mounting:
PCB Mount
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Lever
Contact Rating @ Voltage:
0.3@6VDC A
Maximum Movement Differential:
N/A
Operating Force:
0.2 N
Termination Style:
PC Pins
Body Orientation:
Right Angle
IP Rating:
N/A
The TS0101F020V4 is sub-miniature snap action switch typically used for security/detection, appliance, instrumentation and power tools. Operating temperature range is from -25°C to 85°C.
Search Keywords:
TS0101F020V4
IN STOCK: 0
Minimum Order Quantity:
25
Factory Lead-Time
14 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
25
$0.8806
$22.0150
250
$0.7245
$181.1250
500
$0.7136
$356.8000
2,000
$0.6578
$1,315.6000
4,000
$0.5731
$2,292.4000
6,000
$0.5078
$3,046.8000
8,000
$0.4953
$3,962.4000
16,000 +
$0.4739
$7,582.4000
Suppliers Standard Package
Product Guides
PDF 3D Model
PDF Datasheet
